Technical Specifications – Teranex Mini IP Video 12G

Connections

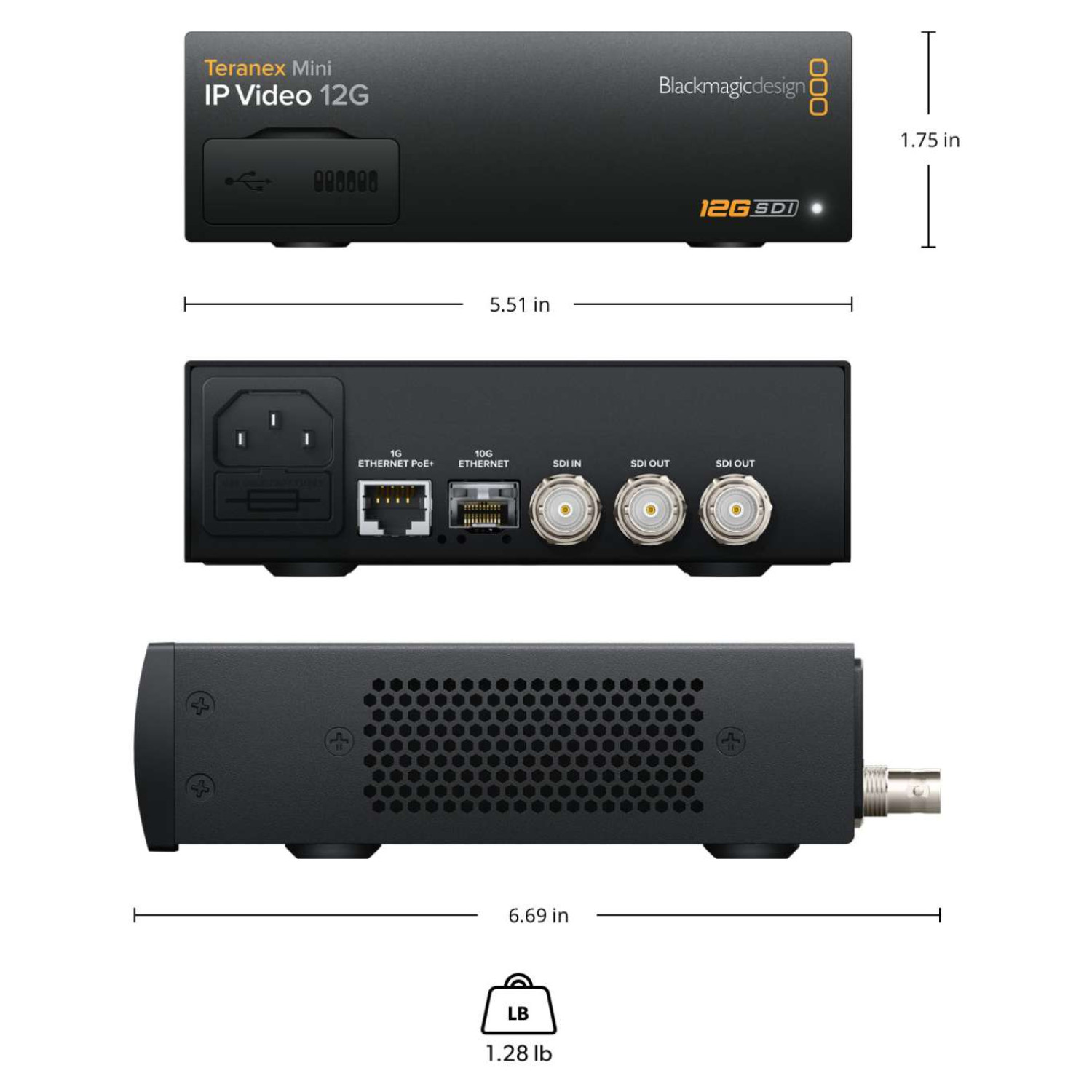

The Teranex Mini IP Video 12G features one 10-bit SDI video input supporting HD-SDI, 6G-SDI, and 12G-SDI formats. It provides two 10-bit SDI video outputs with the same format compatibility. For network connectivity, a Gigabit Ethernet port supports 3G-SDI up to 1080p60 using TICO encoding and decoding, while an optional 10G optical data Ethernet interface supports Ultra HD up to 2160p60 with TICO encoding and decoding. The device supports multi-rate operation with automatic detection of HD-SDI, 6G-SDI, or 12G-SDI. Firmware updates and IP configuration can be performed via USB 2.0 (high-speed 480Mb/s) or Ethernet. All SDI outputs feature reclocking with auto-switching between HD, 6G-SDI, and 12G-SDI video formats.

Supported Video Standards

For HD video, the unit supports 720p at 50, 59.94, and 60 fps; 1080i at 50, 59.94, and 60 fps; 1080p from 23.98 up to 60 fps; and 1080PsF from 23.98 to 30 fps. In 2K DCI formats, it supports progressive and PsF at 23.98, 24, and 25 fps. Ultra HD video formats include 2160p from 23.98 up to 60 fps. For 4K DCI, it supports 23.98, 24, and 25 fps.

SDI Compliance and Processing

The device meets SMPTE 259M, 292M, 296M, 310M, and 425M (level A and B) standards, along with SMPTE 2081-1/10, SMPTE 2082-1/10, ITU-R BT.656, and ITU-R BT.601 compliance. SDI video inputs are switchable between HD, Ultra HD, and 4K, supporting 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI. Video sampling supports both 4:2:2 and 4:4:4 up to 4K DCI 30p, while audio sampling meets the television standard of 48 kHz at 24-bit. SDI color precision is 10-bit for both 4:2:2 and 4:4:4, with YUV or RGB available for inputs and YUV for SDI outputs. Automatic SDI switching ensures compatibility across different signal types. SMPTE 352M video payload identification ancillary data is also supported.

Display and Control

An optional Teranex Mini Smart Panel with a 2.2-inch LCD display is available for on-unit configuration and monitoring. The device includes built-in switches and supports setup via the Blackmagic IP Video Setup and Videohub Router Control software for both macOS and Windows. An optional front-mounted Smart Panel with LCD, rotary knob, and six control buttons provides direct access to settings.

Software

The included software package, provided on SD card, contains the Blackmagic IP Video Setup utility and Videohub Router Control software for both Mac and Windows platforms. Internal software upgrades are handled through the included updater application. Supported operating systems include macOS 10.15 Catalina, macOS 11.1 Big Sur or later, and Windows 10 (64-bit).

Power Requirements

The Teranex Mini IP Video 12G requires an IEC power cable and supports a wide input voltage range of 100–240V AC. The unit features power-fail protection, preserving settings and restoring them instantly upon power-on. It can also be powered via 48V DC using PoE+ (Power over Ethernet). Typical power consumption is 16 watts.

Environmental Specifications

The device supports YUV 4:2:2 operation in HD, 2K, and 4K modes, and allows 33-point LUT loading via the Teranex Utility. Operating temperature is specified within standard professional equipment ranges, with storage from -20° to 60°C (-4° to 140°F) and relative humidity from 0% to 90% non-condensing.

Included Accessories

The package includes the Teranex Mini IP Video 12G unit and a welcome wallet containing a QR code for software download.

Warranty

The product is covered by a 3-Year Limited Manufacturer’s Warranty.
