GPU & Core Performance
The ZOTAC Gaming GeForce RTX 5070 Twin Edge OC is built on the powerful NVIDIA GeForce RTX 5070 GPU, designed to deliver high-end gaming and creative performance. It comes equipped with 6,144 CUDA cores and an engine boost clock of 2542 MHz, offering slightly higher speeds compared to the standard Twin Edge model. With support for Microsoft DirectX 12 Ultimate and OpenGL 4.6, this GPU ensures advanced rendering, real-time ray tracing, and AI-driven enhancements for next-generation visuals and workloads.

Memory & Interface
To support demanding applications and modern AAA titles, the card features 12GB of GDDR7 video memory paired with a 192-bit memory bus. With a 28 Gbps memory clock speed, users can expect fast texture loading, smoother frame rates, and responsive performance in 4K and 8K gaming scenarios. The GPU utilizes the PCI Express 5.0 x16 interface, ensuring maximum bandwidth and compatibility with the latest motherboards.

Display & Connectivity

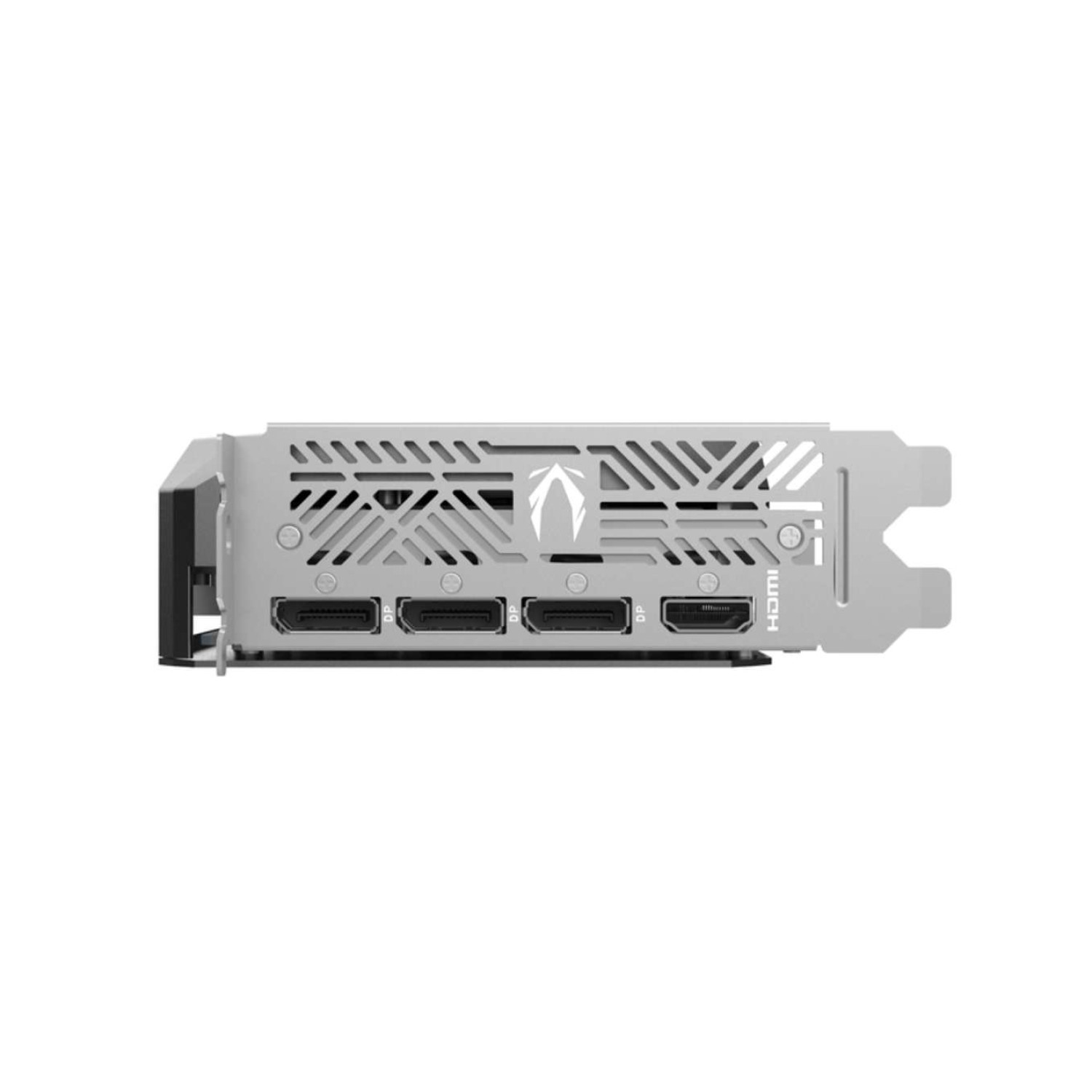

The RTX 5070 Twin Edge OC supports quad-display setups, ideal for immersive gaming, streaming, or multi-tasking environments. It includes three DisplayPort 2.1b outputs with UHBR20, capable of handling up to 4K at 480Hz or 8K at 165Hz with DSC. Additionally, the HDMI 2.1b connector supports 4K at 120Hz HDR or 8K at 60Hz HDR, along with Variable Refresh Rate (VRR) for stutter-free and tear-free gaming experiences. For secure digital content delivery, the GPU is compliant with HDCP 2.3.

Cooling & Design
The card is powered by ZOTAC’s IceStorm 2.0 cooling technology, designed to maintain optimal temperatures even under heavy workloads. Its dual-slot design allows for efficient airflow while maintaining compactness, making it suitable for a wide range of PC builds. The card measures 241.5mm x 120.1mm x 40.6mm (9.5" x 4.7" x 1.6"), balancing high performance with a space-efficient form factor.

Power & System Requirements
With a power consumption of 250W, the RTX 5070 Twin Edge OC requires a 650W recommended power supply for stable operation. It uses a single 12V-2x6 power input, ensuring efficient and reliable power delivery. For compatibility with standard PSU setups, the package also includes two 8-pin-to-16-pin power cables. The GPU is supported on Windows 11 and Windows 10 64-bit (version 1809 or later) operating systems.

Included Accessories

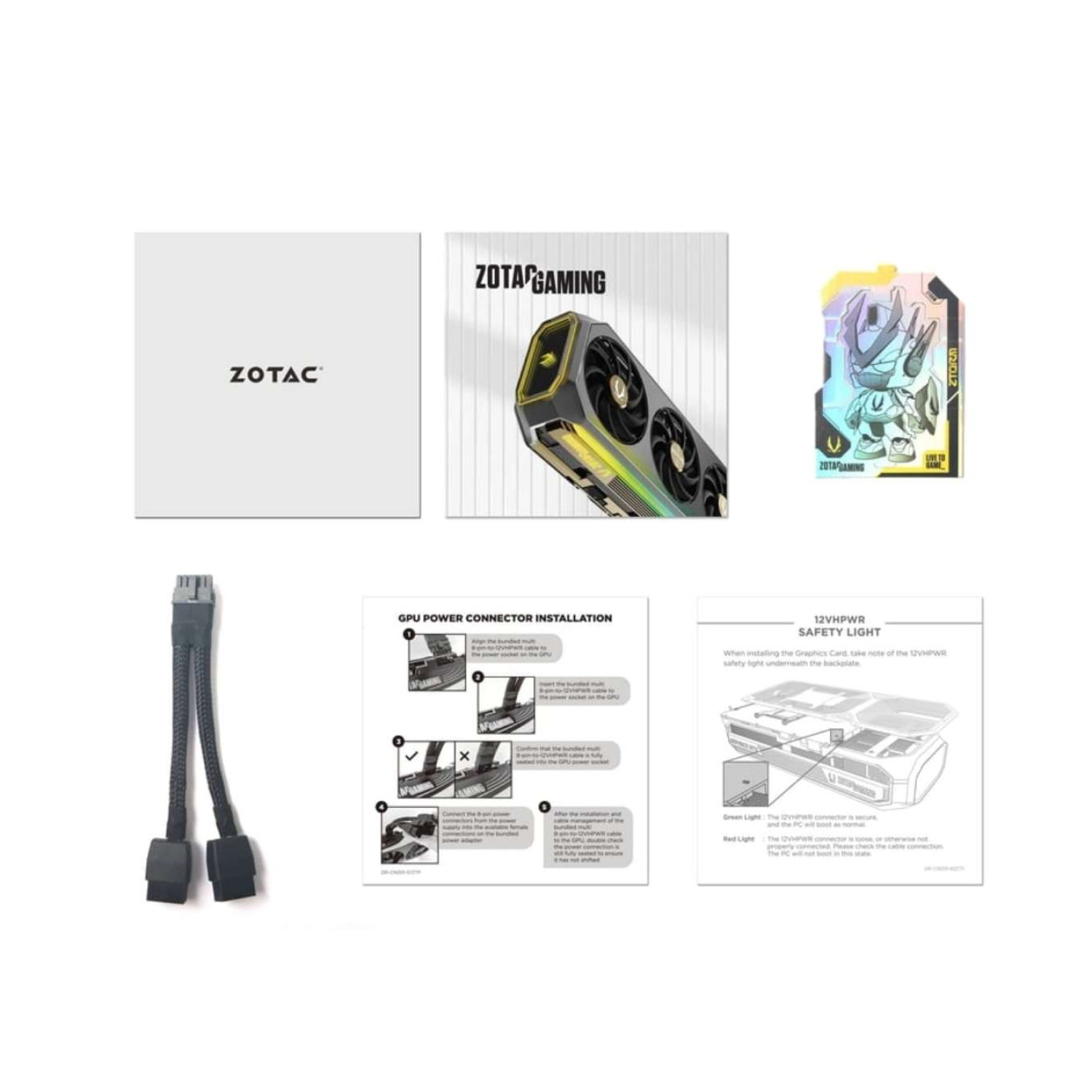

Inside the box, users will find a user manual for setup and installation, along with two 8-pin-to-16-pin cables, ensuring flexibility with different power supply units.
