GPU Engine Specifications
The GeForce RTX™ 5070 1-Click OC is equipped with 6144 CUDA cores, delivering exceptional performance for next-gen gaming, creative workflows, and AI-accelerated tasks. It runs at a boost clock speed of 2527 MHz, which can be further increased to 2542 MHz using the Xtreme Tuner Plus software with the 1-Click OC feature, enabling instant overclocking for extra power when needed.

Memory Specifications
This GPU features 12 GB of high-speed GDDR7 memory with a blazing 28 Gbps memory speed. It utilizes a 192-bit memory interface and offers a massive 672 GB/sec bandwidth, ensuring rapid data transfer for high-resolution textures, real-time ray tracing, and demanding workloads.

Feature Support
Supporting the PCI Express 5.0 interface, the GeForce RTX™ 5070 ensures ultra-fast data throughput and future-proof system compatibility. It works seamlessly with Windows 10 and Windows 11 64-bit operating systems, taking full advantage of modern gaming and productivity environments.

Cooling System

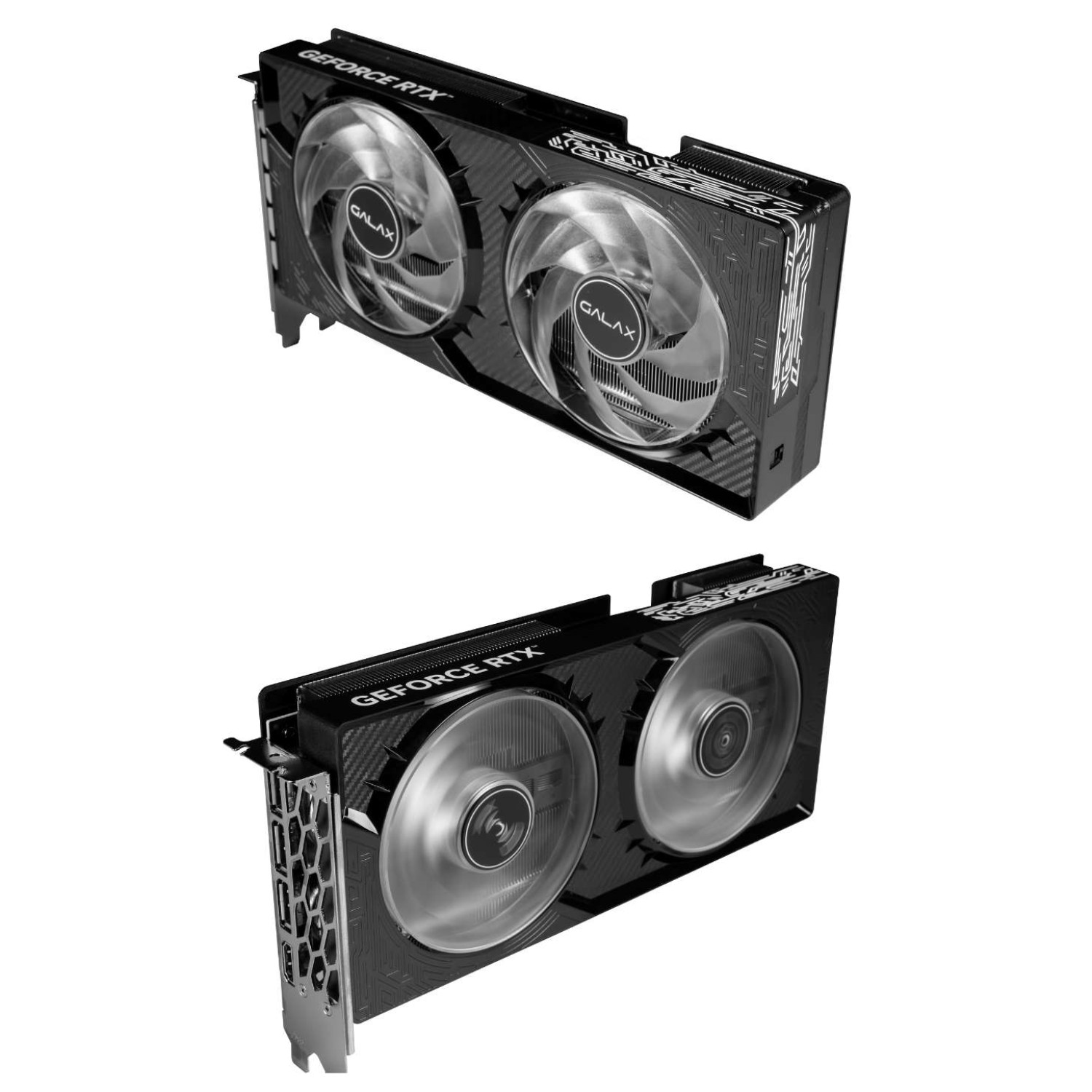

The card is cooled by dual 92mm WINGS 3.0 fans designed for maximum airflow and minimal noise. The advanced fan stop feature halts all fans during idle or low-load conditions, ensuring silent operation while maintaining cooling efficiency under heavy workloads.

Display Support

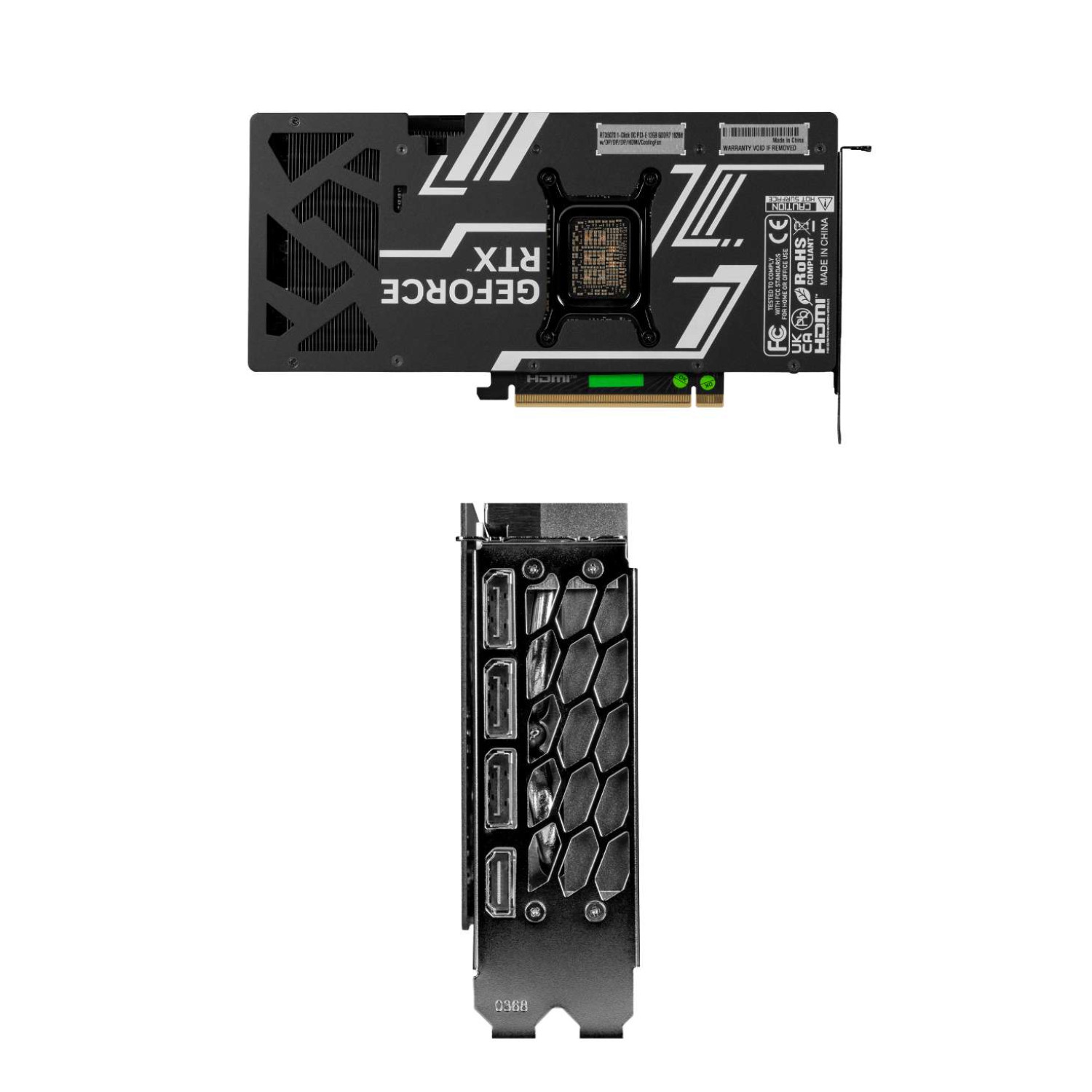

Connectivity options include three DisplayPort 2.1b ports and one HDMI 2.1b port, providing support for ultra-high resolutions, high refresh rates, and next-generation display technologies.

Dimensions
With bracket: 252 × 131 × 40.6 mm
Without bracket: 240 × 115.5 × 39.6 mm (NVIDIA SFF-Ready design for compact builds)

In-Box Accessories
The package includes a PCIe 1 × 16-pin to 2 × 8-pin power adapter for easy integration with a variety of power supply configurations.
