GPU & Core Specifications

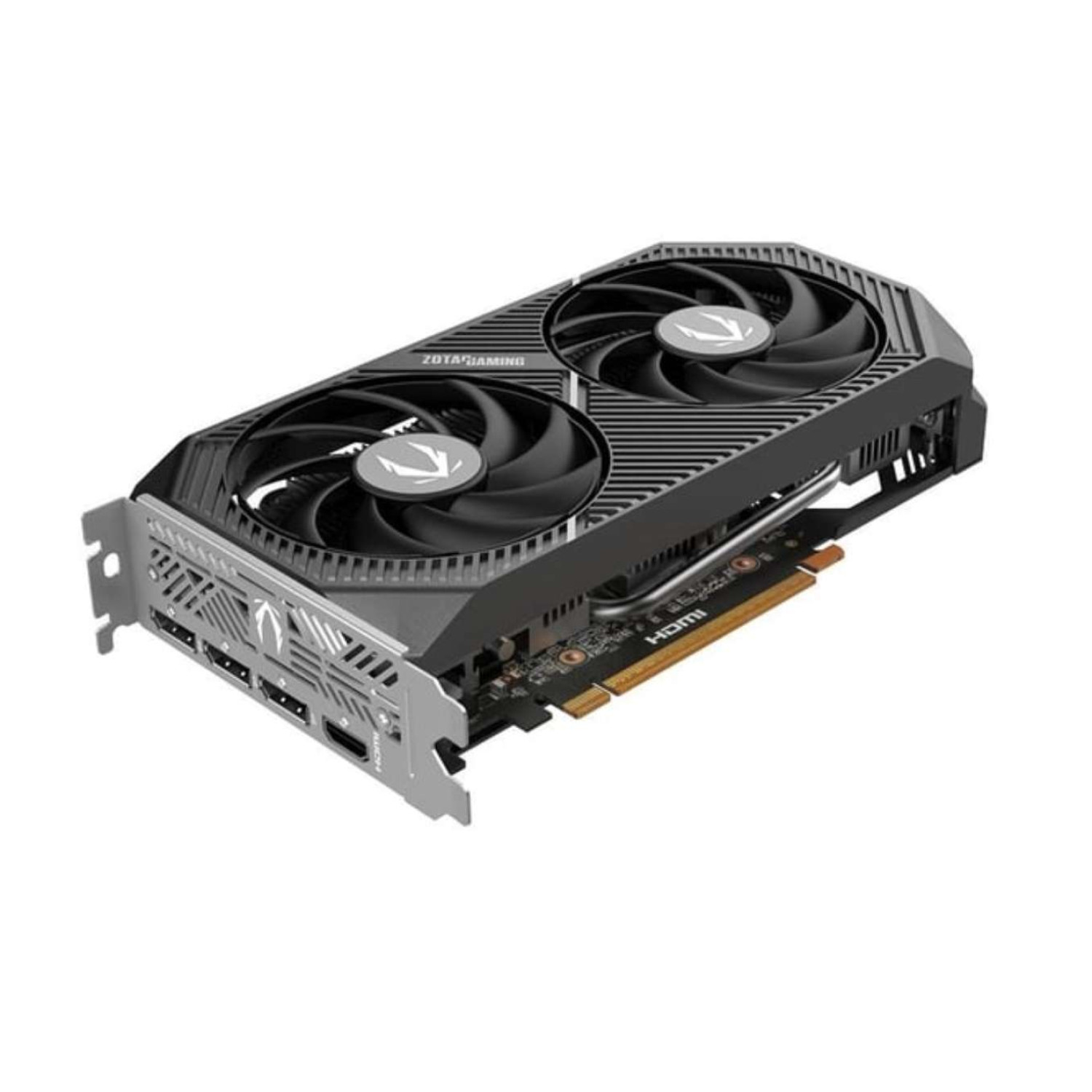

The ZOTAC Gaming GeForce RTX 5060 Twin Edge OC is powered by the NVIDIA GeForce RTX 5060 GPU, delivering next-gen gaming and creative performance. With 3,840 CUDA cores and an overclocked boost clock of 2527 MHz, it provides enhanced processing power for smooth gameplay, AI acceleration, and advanced ray tracing. Supporting Microsoft DirectX 12 Ultimate and OpenGL 4.6, this GPU is designed to handle modern and future gaming technologies.

Memory & Interface
Equipped with 8GB of high-speed GDDR7 video memory, the card ensures optimal performance across intensive workloads and high-resolution gaming. Its 128-bit memory bus and 28 Gbps memory clock provide excellent bandwidth and responsiveness. The graphics card connects via PCI Express 5.0 x8, ensuring fast communication with the system for reduced latency and maximum efficiency.

Display & Connectivity

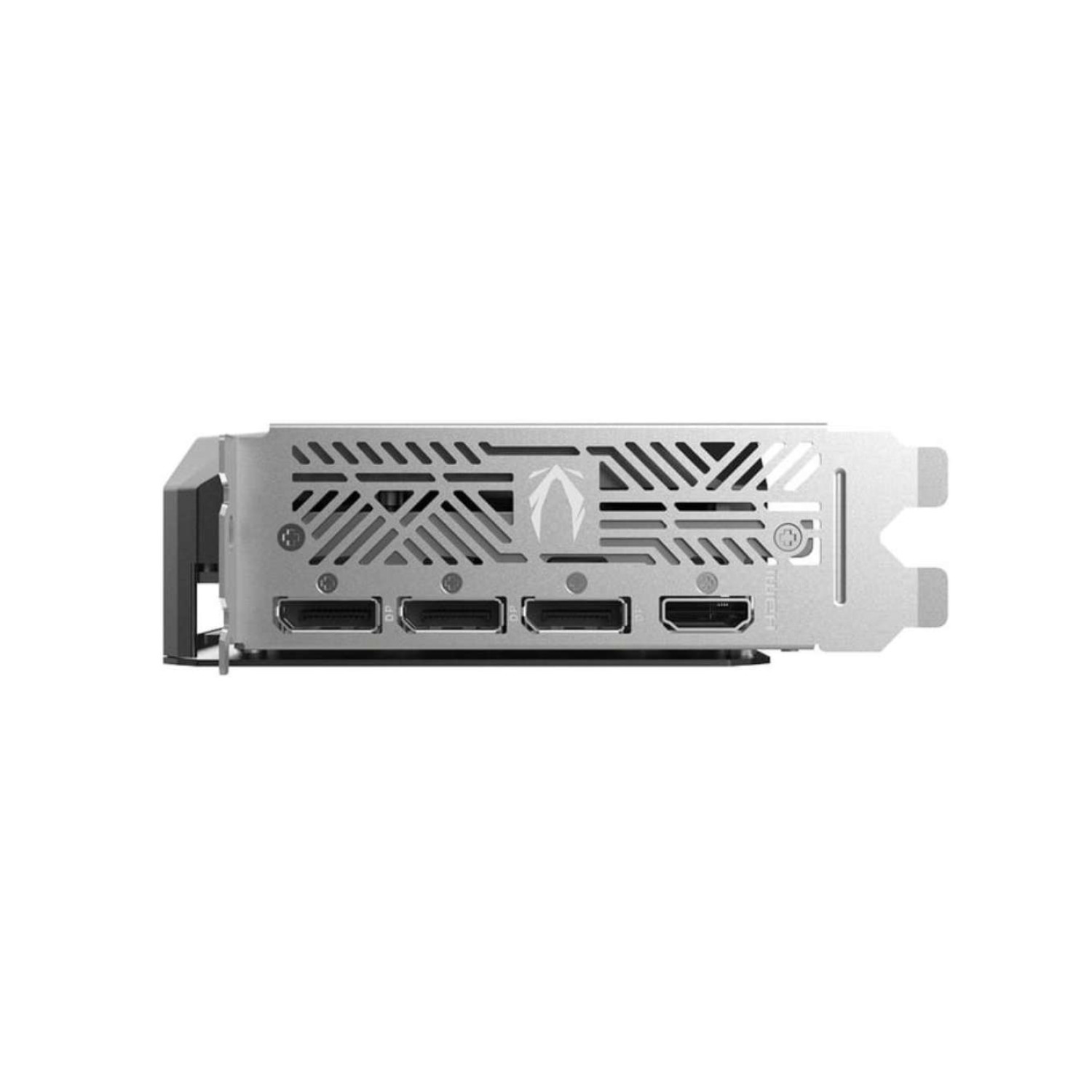

The Twin Edge OC supports up to quad display output, making it suitable for immersive multi-monitor setups. It includes three DisplayPort 2.1b connectors with UHBR20, supporting resolutions up to 4K at 480Hz or 8K at 165Hz with DSC. Additionally, there is one HDMI 2.1b port, capable of 4K at 480Hz HDR or 8K at 120Hz HDR with DSC, with support for Gaming Variable Refresh Rate (VRR). HDCP 2.3 support ensures secure playback of protected content.

Cooling & Design
This model features a reliable air-cooled thermal solution that keeps the GPU stable under heavy workloads. Designed with a dual-slot form factor, the card measures 220.5mm x 120.25mm x 41.6mm (8.7" x 4.7" x 1.6"), offering compatibility with a wide range of system builds while maintaining efficient cooling performance.

Power & System Requirements
The card has a power consumption of 145W, with a recommended 550W power supply for stable operation. It requires a single 8-pin power connector to deliver sufficient energy for high performance. Compatibility extends to Windows 11 and Windows 10 (64-bit, version 1809 November 2018 or later).

Included Accessories
The package includes a user manual, providing guidance for installation and setup.
