Graphics Processing Unit

The ZOTAC Twin Edge is powered by the NVIDIA GeForce RTX 4060 GPU, built on advanced Ada Lovelace architecture to deliver exceptional efficiency and next-gen gaming performance. With 3072 CUDA cores, it provides smooth rendering, AI-driven enhancements, and accelerated ray tracing for immersive visual experiences.

Memory Configuration

Equipped with 8GB of GDDR6 video memory on a 128-bit memory bus, the card ensures fast and reliable data transfer for gaming and creative applications. Running at a 17 Gbps memory clock, it can handle modern game textures, large workloads, and demanding resolutions with ease.

Clock Speed

The card achieves a boost clock of 2460 MHz, enabling higher frame rates and responsive performance during intensive gaming sessions. This factory-optimized speed ensures that the GPU performs efficiently under heavy graphical loads.

Bus & Interface

The RTX 4060 Twin Edge supports PCI Express 4.0 x8, ensuring a high-bandwidth interface with the latest motherboards. It is fully compatible with modern gaming and workstation setups, providing seamless system integration.

Display Support

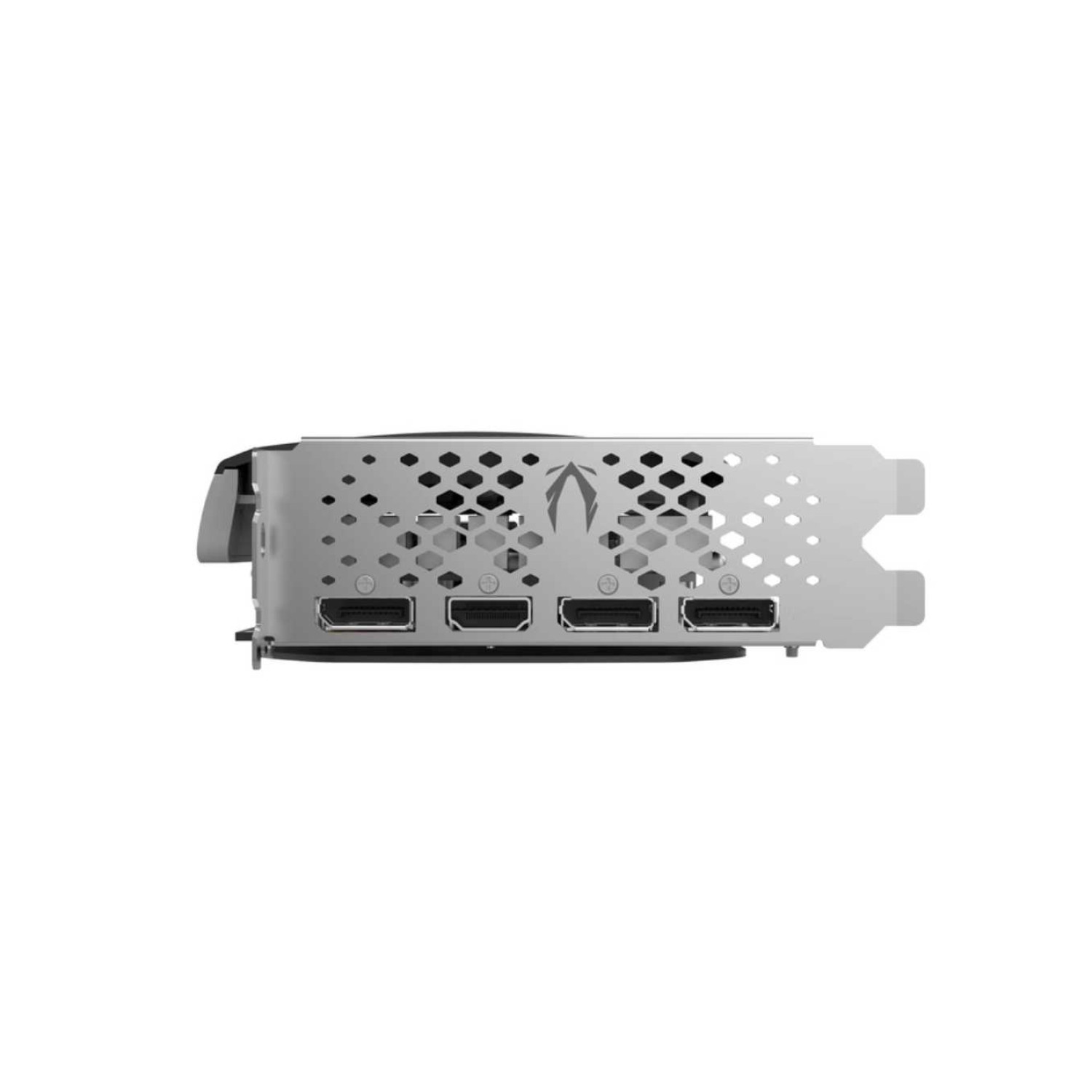

For display connectivity, the card offers 3 x DisplayPort 1.4a outputs, supporting up to 7680x4320 resolution at 60Hz, along with 1 x HDMI 2.1a connector capable of 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate support. With HDCP 2.3 compliance and quad display capability, it can power up to four monitors simultaneously.

Power & Thermal Requirements

The card has a power consumption of 115W–120W and requires a minimum 500W PSU for stable operation. It is powered through a single 8-pin PCIe connector. Cooling is managed with an air-cooled dual-fan design, optimized for silent yet efficient thermal management.

Software & API Support

The GPU is fully compatible with DirectX 12 Ultimate and OpenGL 4.6, ensuring broad support for modern games and professional applications. It is designed for systems running Windows 11/10 (64-bit, version 1809 or later).

Form Factor & Dimensions

With a dual-slot design, the card measures 221.4mm x 122.7mm x 43.1mm (8.7" x 4.8" x 1.7"), making it compact enough for small to mid-sized builds while maintaining excellent performance and cooling efficiency.

Accessories Included

The package includes a user manual to assist with installation and setup.
