Graphics Processing Unit

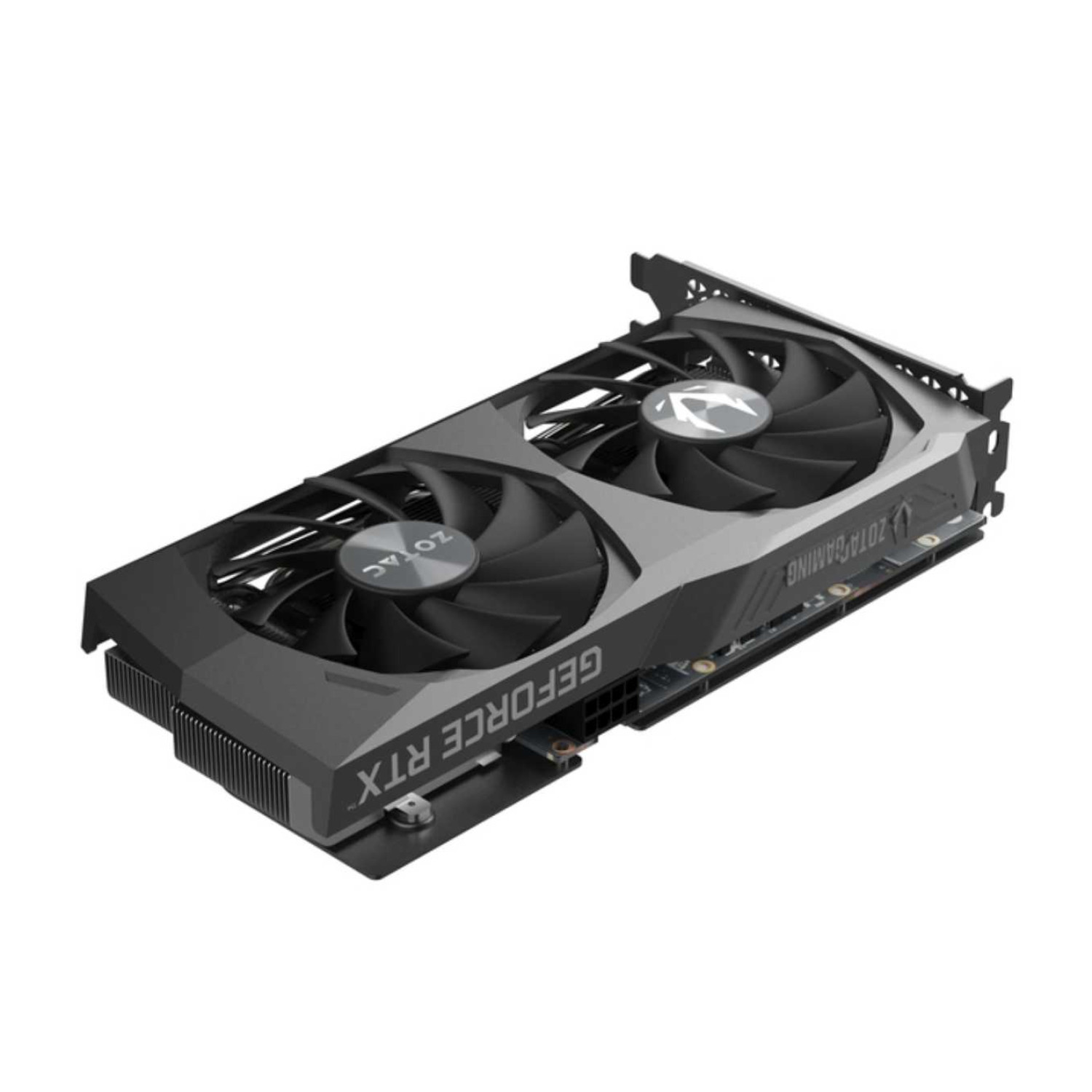

The ZOTAC Twin Edge is powered by the NVIDIA GeForce RTX 3060 GPU, built on Ampere architecture to deliver reliable gaming and creative performance. With 3584 CUDA cores, it ensures smooth gameplay, efficient ray tracing, and AI-accelerated features designed for next-generation experiences.

Memory Configuration

This card is equipped with 12GB of GDDR6 video memory on a 192-bit memory bus, offering high bandwidth and fast data access for demanding games and workloads. Running at a 15 Gbps memory clock, it is capable of handling large textures, modern resolutions, and multitasking with ease.

Clock Speed

The RTX 3060 Twin Edge operates at a boost clock speed of 1777 MHz, delivering optimized performance under heavy workloads and ensuring a responsive gaming experience across titles.

Bus & Interface

With support for PCI Express 4.0 x16, the GPU provides maximum bandwidth for communication with the CPU and system memory. This ensures efficient performance in both gaming and professional applications.

Display Support

The card offers 3 x DisplayPort 1.4a outputs supporting resolutions up to 7680x4320 at 60Hz, along with 1 x HDMI 2.1 connector that supports 8K at 60Hz or 4K at 120Hz, provided an Ultra High Speed HDMI cable is used. With HDCP 2.3 compliance and quad display capability, it can drive up to four monitors simultaneously for enhanced productivity and immersive setups.

Power & Thermal Requirements

The GPU has a power consumption of 170W and requires a 600W power supply for stable operation. It draws power via a single 8-pin PCIe connector. Cooling is handled by ZOTAC’s IceStorm 2.0 technology, which provides efficient airflow and optimized fan performance to maintain ideal operating temperatures.

Software & API Support

The RTX 3060 is fully compatible with DirectX 12 Ultimate and OpenGL 4.6, ensuring support for the latest games and creative software. It is designed for systems running Windows 10 64-bit (build 2004 or later).

Form Factor & Dimensions

With a dual-slot design, the card measures 224.1mm x 116.3mm x 39.2mm (8.8" x 4.6" x 1.5"), making it suitable for a wide range of mid-sized PC builds while maintaining a balance of cooling efficiency and compactness.

Accessories Included

The package includes a user manual to guide installation and setup.
