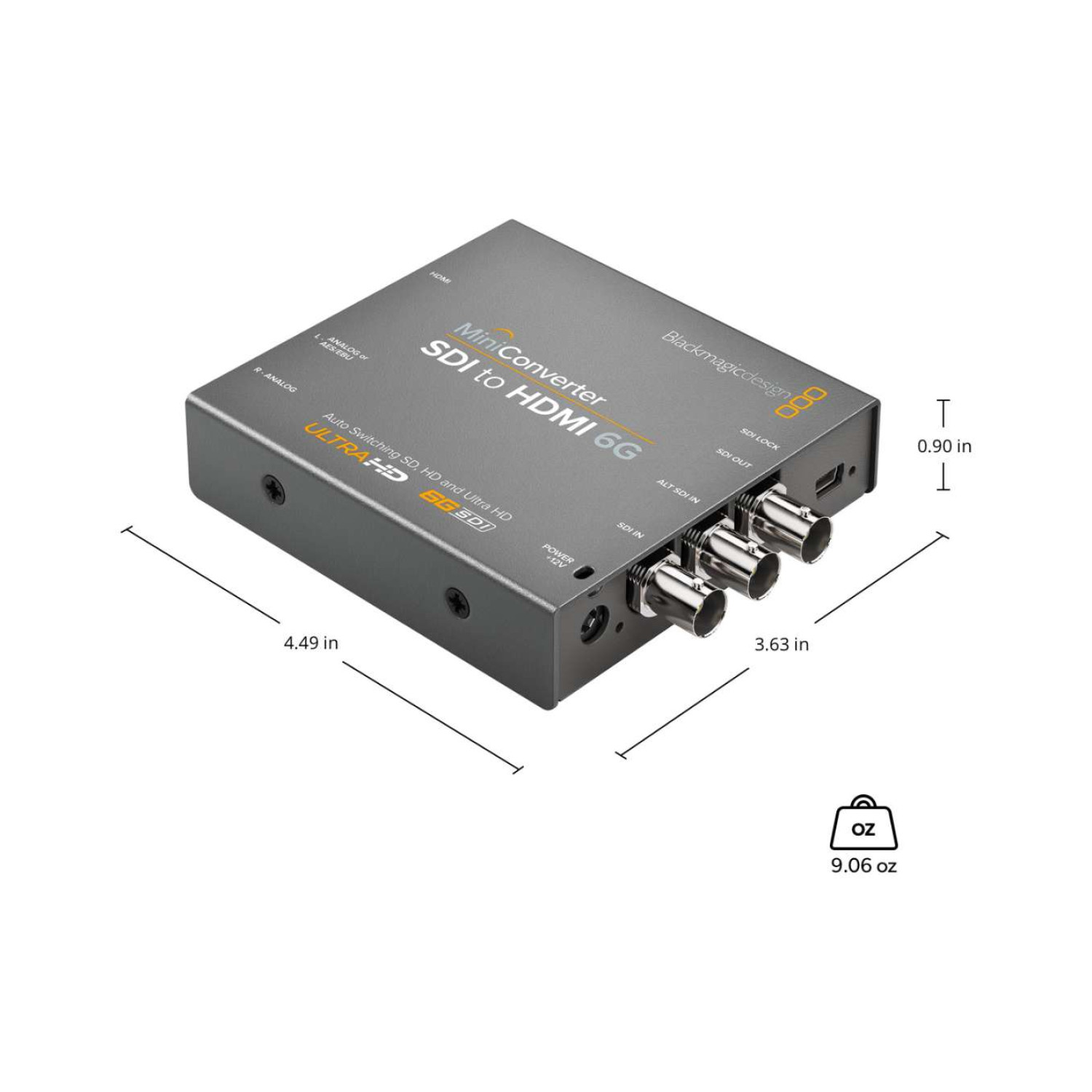

Mini Converter SDI to HDMI 6G Technical Specifications

Connections

The Mini Converter SDI to HDMI 6G is equipped with one SD, HD, or 6G-SDI video input and an ALT SDI input for automatic switchover in case the main input fails. It includes one SDI video loop output and an HDMI Type A output for direct connection to HDMI devices. Audio output options include two channels of balanced analog audio and two channels of AES/EBU digital audio. The SDI redundant input ensures uninterrupted operation by automatically switching if the primary SDI signal is lost. Multi-rate support enables automatic detection of SD, HD, or 6G-SDI signals. Updates and configuration can be performed via USB, and reclocking is supported for signal stability.

Video Standards & Formats

SD Video Standards: 625i50 PAL, 525i59.94 NTSC
HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

The SDI interface complies with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST-2081, as well as ITU-R BT.656 and ITU-R BT.601 standards. SDI video rates are automatically detected between standard definition and high definition formats.

Video & Audio Processing

SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: 48 kHz, 24-bit television standard
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD, or 6G-SDI

For HDMI output, supported formats match the SDI standards and include resolutions up to Ultra HD. HDMI Color Space supports both YUV and RGB, with Color Precision at 4:2:2 and 4:4:4 for professional image quality.

Software Control & Updates

The converter supports configuration and updates via Mac OS and Windows through USB. Compatible operating systems include Mac OS 10.15 Catalina or later, and Windows 10 (64-bit). Firmware updates can be performed using the included updater application. Settings can be adjusted via mini switches or USB software.

Power Requirements

The device includes a +12V universal power supply with international socket adapters and a cable tie point. It operates within a voltage range of 12V to 18V DC and has a power consumption of 5.2 watts.

Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing

What's Included

• Mini Converter SDI to HDMI 6G

• 12V universal power supply with international socket adapters

Warranty

The product is covered by a 3-Year Limited Manufacturer’s Warranty.
