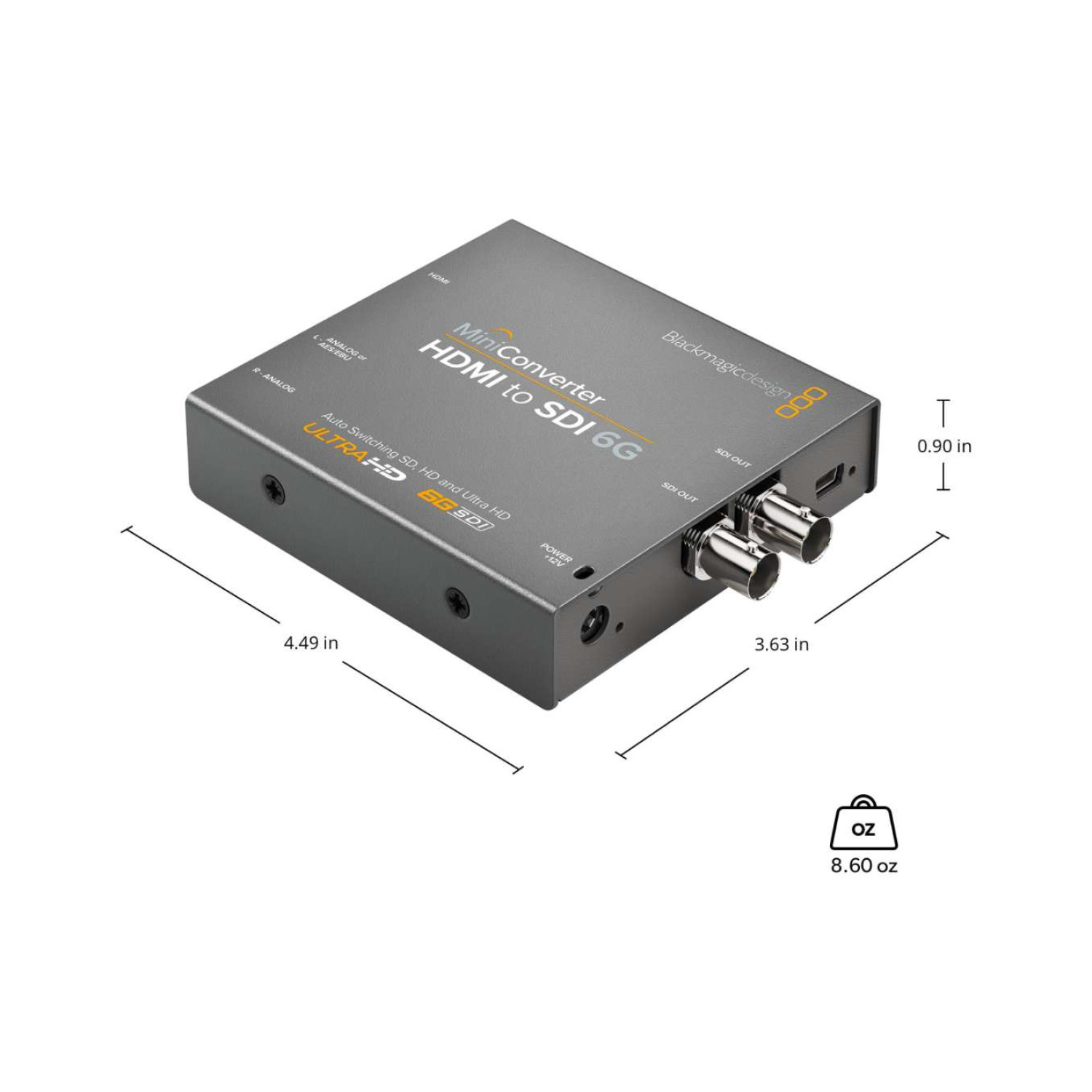

Mini Converter HDMI to SDI 6G Technical Specifications

Connections

The Mini Converter HDMI to SDI 6G features two SDI video outputs that automatically match the SD, HD, or 6G-SDI HDMI video input. It includes a HDMI type A input, two channels of professional balanced analog audio inputs with standard 1/4-inch jack connections, and two channels of AES/EBU digital audio inputs. The converter supports auto detection for SD, HD, and 6G-SDI formats, and can be updated or configured via USB. Built-in reclocking ensures optimal signal integrity.

Video Standards & Formats

SD Video Standards: 625i50 PAL, 525i29.97 NTSC
HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

The SDI interface is compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, and ITU standards BT.656 and BT.601. SDI video rates are automatically detected between SD, HD, 3G-SDI, and 6G-SDI, with Level B support on 3G-SDI outputs.

Video & Audio Processing

SDI Video Sampling: 4:2:2
SDI Audio Sampling: 48 kHz, 24-bit television standard
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Auto-detects SD, HD, or 6G-SDI signals

For HDMI, supported standards include SD, HD, Ultra HD, and 4K resolutions, matching the list above. HDMI Color Space supports YUV and RGB, with Color Precision at both 4:2:2 and 4:4:4. The HDMI input cannot capture copy-protected sources.

Format Conversion

The Mini Converter HDMI to SDI 6G supports HD down-conversion, making it compatible with a variety of workflows and display requirements.

Software Control & Updates

The device can be controlled and updated using Mac OS or Windows via USB. Compatible operating systems include Mac OS 10.15 Catalina or later, and Windows 10 (64-bit). Updates are applied via the included updater application. Control is available through mini switches or USB software.

Power Requirements

The converter comes with a +12V universal power supply with international socket adapters and a cable tie point. It consumes 4.44W and operates within a voltage range of 12V to 18V DC.

Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing

What's Included

• Mini Converter HDMI to SDI 6G

• 12V universal power supply with international socket adapters

Warranty

The product is backed by a 3-Year Limited Manufacturer’s Warranty.
