Micro Converter SDI to HDMI 3G Technical Specifications

Connections

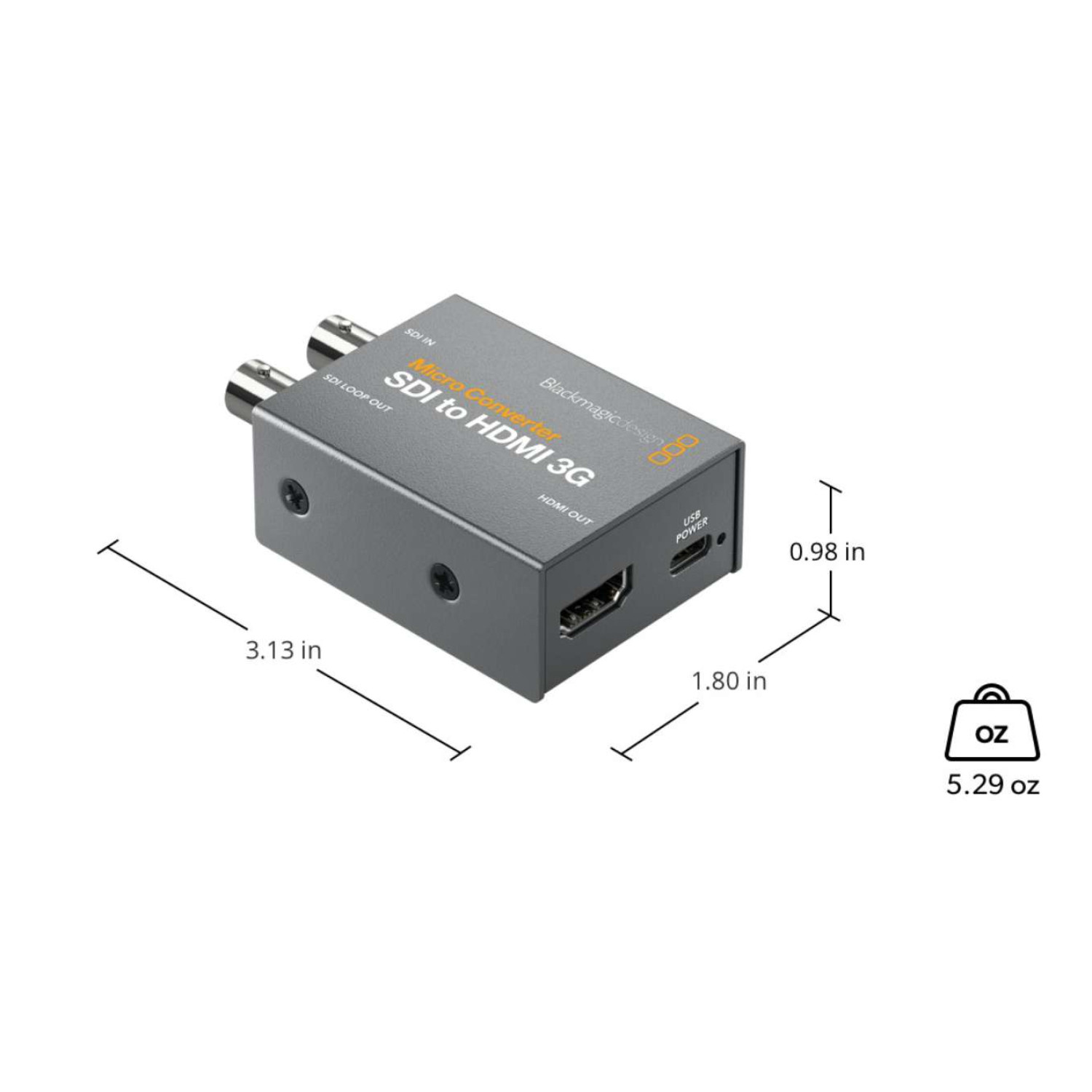

The Micro Converter SDI to HDMI 3G is equipped with a single SD, HD, or 3G-SDI video input, along with one SDI loop output for flexible signal routing. It also features an HDMI Type-A output for direct connection to HDMI displays. The converter supports multi-rate functionality with automatic detection of SD or HD formats, ensuring seamless operation across different resolutions. USB Type-C is provided for updates, configuration, and power.

Video Standards & Formats
The converter supports a wide range of video formats. For SDI input, it is compatible with SD standards including 525i59.94 NTSC and 625i50 PAL, as well as HD standards such as 720p50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60, 1080PsF25/29.97/30, and 1080i50/59.94/60. It also supports 2K DCI formats including 2Kp23.98/24/25/29.97/30/47.95/48/50/59.94/60 and 2KPsF25/29.97/30. HDMI output supports SD formats (525i29.97 NTSC, 625i50 PAL) and HD formats including 720p50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60, and 1080i50/59.94/60.

Signal Compliance & Color Processing
SDI inputs and outputs comply with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, and SMPTE 425M standards. The converter supports SDI video rates switchable between SD, 720p, 1080i, 1080p, and DCI high definition, with 4:2:2 color precision and YUV color space. Automatic detection of SD, HD, and 3G-SDI level A or B is supported. HDMI output delivers 4:2:2 color precision in YUV color space, with the ability to load a 17-point LUT via the software utility for color calibration or enhancement.

Control & Software
All settings can be configured via the included software utility for macOS™ and Windows™, connected through USB. The converter supports macOS 10.15 Catalina, macOS 11.1 Big Sur or later, and Windows 10 (64-bit). Internal software upgrades are available via USB connection.

Power Requirements
The device consumes only 1.6 W of power and operates within a voltage range of 4.4V to 5.25V DC, making it highly energy-efficient and suitable for portable setups.

Environmental Specifications
The converter operates reliably in temperatures ranging from 0° to 40° C (32° to 104° F) and can be stored in temperatures from -20° to 60° C (-4° to 140° F). It supports relative humidity levels of 0% to 90% non-condensing.

Package Contents & Warranty
The package includes the Micro Converter SDI to HDMI 3G unit. The product comes with a 3-year limited manufacturer’s warranty, ensuring peace of mind and long-term reliability.
