DeckLink SDI Micro – Technical Specifications

Connections

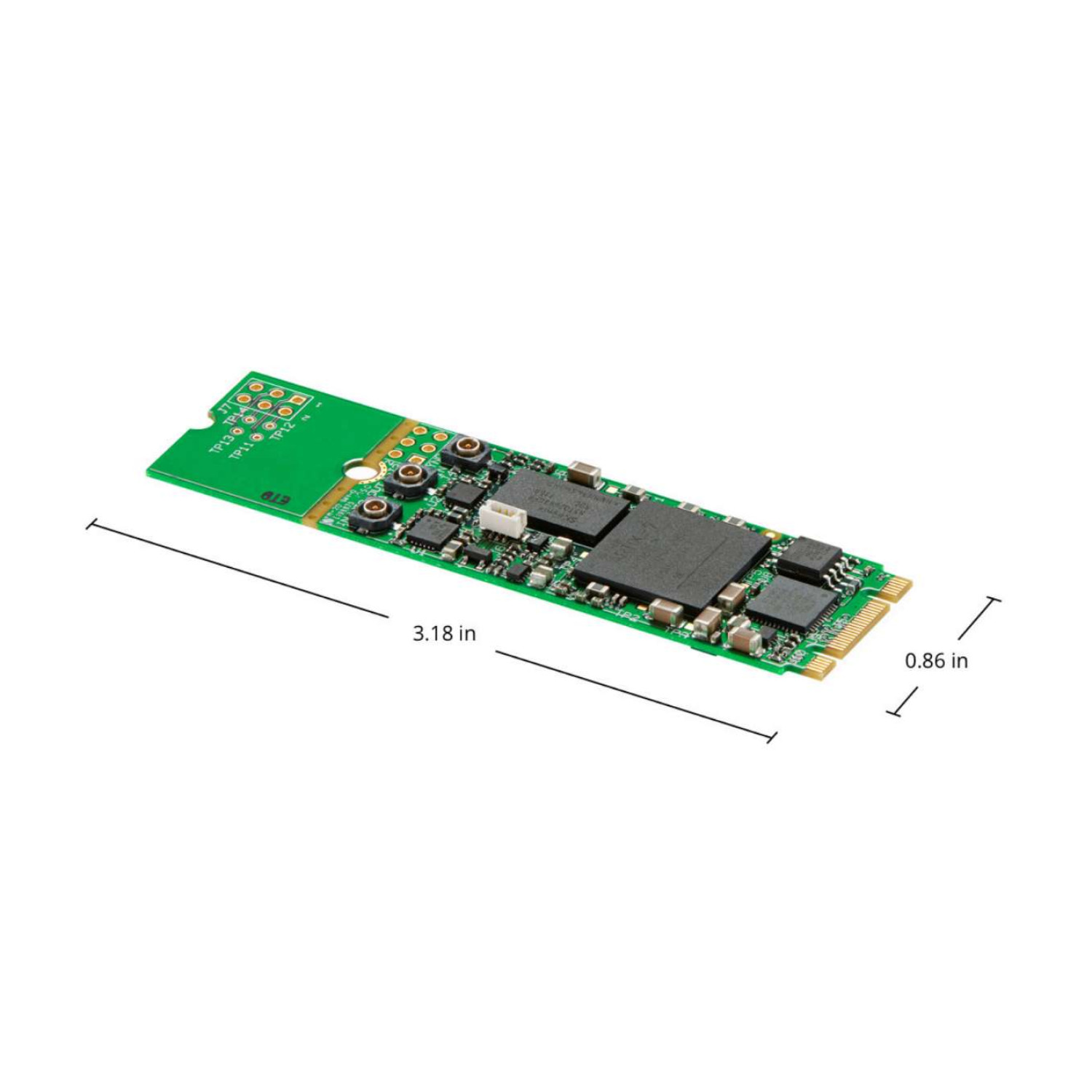

The DeckLink SDI Micro connects via an M.2 PCI Express 1-lane Generation 3 interface, compatible with B and M key configurations. It supports type 2260 and 2280 form factors, making it ideal for compact and embedded systems that demand professional video capabilities in a miniature footprint.

Supported Video Standards
This device supports a wide range of SD and HD video formats.
SD Video Standards include: 525i59.94 NTSC and 625i50 PAL.
HD Video Standards include:

• Progressive: 720p50, 720p59.94, 720p60

• Full HD: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

• PsF (Progressive Segmented Frame): 1080PsF23.98, PsF24, PsF25, PsF29.97, PsF30

• Interlaced: 1080i50, 1080i59.94, 1080i60

Video Sampling and Color Precision
The SDI video sampling supports both 4:2:2 and 4:4:4 formats.
Color precision includes 8, 10, and 12-bit RGB 4:4:4 up to 1080p30, and 8 or 10-bit YUV 4:2:2 in all modes. This provides high-quality, broadcast-grade image fidelity suitable for professional workflows.

SDI Compliance
Compliant with major industry standards including SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, as well as ITU-R BT.656 and ITU-R BT.601, ensuring interoperability with a wide range of SDI-based devices.

Part Numbers

• DeckLink SDI Micro: Order Code – BDLKMICROSDI

• SDI Cable: Order Code – CABLE-BDLKMIR/SDI

Operating System Compatibility
Compatible with Windows 7, 8, and 10 (all 64-bit versions) as well as Linux, enabling flexibility for integration into varied computing environments.

Power Requirements
The card consumes a maximum of 4.03W, making it highly efficient for continuous use in portable or embedded applications.

EMC Certifications
The DeckLink SDI Micro meets international compliance standards, including EMC, FCC, CE, C-Tick, and KCC, making it safe for use in global markets.

Environmental Specifications

• Operating Temperature: -25°C to 55°C (-13°F to 131°F)

• Storage Temperature: -40°C to 75°C (-40°F to 167°F)

• Relative Humidity: 0% to 90% non-condensing

What's Included

• DeckLink SDI Micro

• Fan and Heat Sink Assembly

Warranty
Comes with a 3-Year Limited Manufacturer’s Warranty, ensuring long-term reliability and support.
