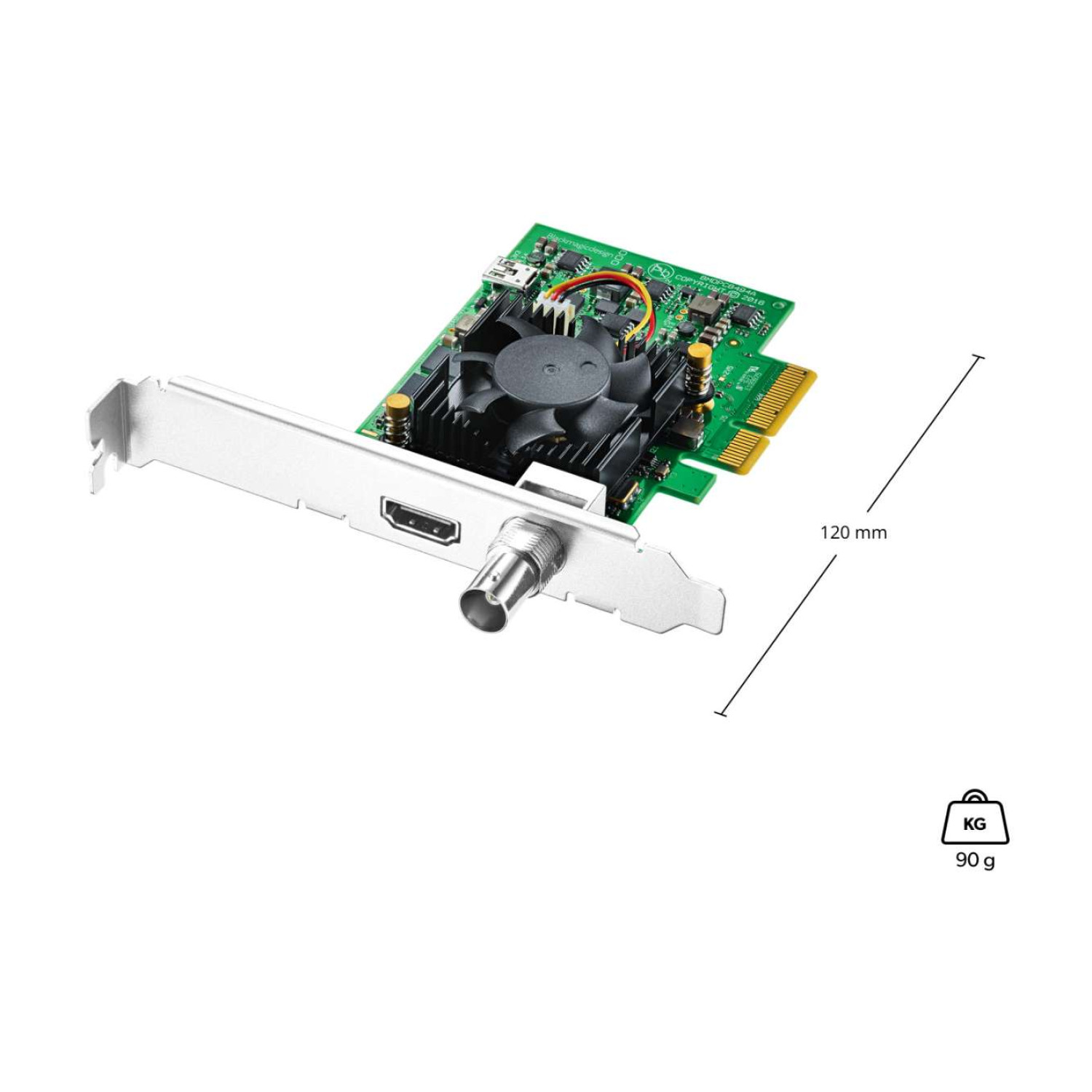

DeckLink Mini Monitor HD – Technical Specifications

Connections

The DeckLink Mini Monitor HD features 1 x 10-bit SD/HD/Ultra HD switchable SDI video output and 1 x HDMI 2.0a output, supporting up to 8 audio channels embedded over HDMI and 16 channels over SDI. This ensures high-fidelity audio and video playback for a variety of professional broadcast and post-production applications. Its PCI Express 4-lane generation 2 interface is compatible with 4, 8, and 16-lane PCIe slots, offering seamless integration with modern workstations.

Supported Codecs

This playback card supports a wide array of industry-standard codecs, including Apple ProRes (all variants), DNxHR, DNxHD, DPX, AVC-Intra, AVCHD, Canon XF MPEG2, DVCPRO HD, HDV, XDCAM EX/HD/HD422, and uncompressed 8/10-bit 4:2:2 video. This versatility ensures smooth interoperability with various NLEs and production workflows.

Software Compatibility

Included with the DeckLink Mini Monitor HD are Media Express, Disk Speed Test, LiveKey, and Blackmagic Desktop Video Utility, along with drivers for macOS, Windows, and Linux. Firmware updates are seamlessly loaded during system start or through the updater utility.

The card is compatible with a broad range of professional software including DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, and Photoshop CC. Additional third-party support includes Wirecast, vMix, OBS, Nuke, Edius, Corel VideoStudio, Magicsoft CG, CasparCG, Livestream Producer, and many more.

Video Standards Support

The card supports both SD and HD video standards, including:

• SD: 525i59.94 NTSC, 625i50 PAL

• HD: 720p50/59.94/60, 1080p23.98–60, 1080i50/59.94/60, 1080PsF23.98–30

• Ultra HD: 2160p23.98–30

• 4K DCI: 4K DCI 23.98p, 24p, 25p

• 2K SDI Only: 2K DCI 23.98p, 24p, 25p and PsF variants

SDI & HDMI Compliance and Features

• SDI Video Sampling: 4:4:4 and 4:2:2

• SDI Color Precision: 8-, 10-, and 12-bit RGB up to 1080p60; 8-, 10-bit YUV in all modes

• HDMI Sampling: 4:4:4, 4:2:2, and 4:2:0

• HDMI Precision: Up to 12-bit Deep Color

• Color Space Support: REC 601, REC 709, and REC 2020

• SDI/HDMI HDR Support: HDR static metadata, HLG, and PQ transfer characteristics

• Metadata & Closed Captioning: RP 188 / SMPTE 12M-2

Video Processing Capabilities

• HD to SD Down Conversion: Software-based during playback

• HD Cross Conversion: From 720p to 1080p on playback

• Color Space Conversion: Hardware-based, real-time

• Real-Time Effects: Supports DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro CC (Mercury Playback Engine), and Avid Media Composer internal effects.

Operating System Compatibility

• macOS: macOS 11.1 Big Sur, macOS 12.0 Monterey or later

• Windows: Windows 10 (64-bit), Windows 11

• Linux: Supported with corresponding drivers and software

Power Requirements

• Power Consumption: 10 Watts

Environmental Specifications

• Operating Temperature: 5°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 45°C (-4°F to 113°F)

• Relative Humidity: 0% to 90% non-condensing

What’s Included

• DeckLink Mini Monitor 4K card

• Low profile PCIe slot bracket

Warranty

• 3-Year Limited Manufacturer’s Warranty
