Technical Specifications – Blackmagic Studio Camera 6K Pro

Camera Features

The Blackmagic Studio Camera 6K Pro is equipped with a Super 35 sensor measuring 23.10mm x 12.99mm, offering an impressive 13 stops of dynamic range. It uses an active EF lens mount with support for iris, focus, and zoom control on compatible lenses. The camera features dual native ISO at 0dB and 18dB gain, delivering a sensitivity of f11 at 2160p59.94 and f12 at 2160p50 under 2,000 lux with 89.9% reflectance. Signal-to-noise ratio reaches 64.62dB for 2160p Ultra HD scaled from 5.3K.

Recording and Frame Rates

Supported recording resolutions include 6K (6144 x 3456) up to 50fps, 6K 2.4:1 (6144 x 2560) up to 60fps, 5.3K 16:9 (5376 x 3024) up to 60fps, and Ultra HD (3840 x 2160) up to 60fps. Project frame rates of 23.98 to 60fps are available, with off-speed frame rates ranging from 5-50fps in 6K and 5-60fps in other resolutions. Four-position ND filters offer clear, 2-stop, 4-stop, and 6-stop IR ND options.

Display and Controls

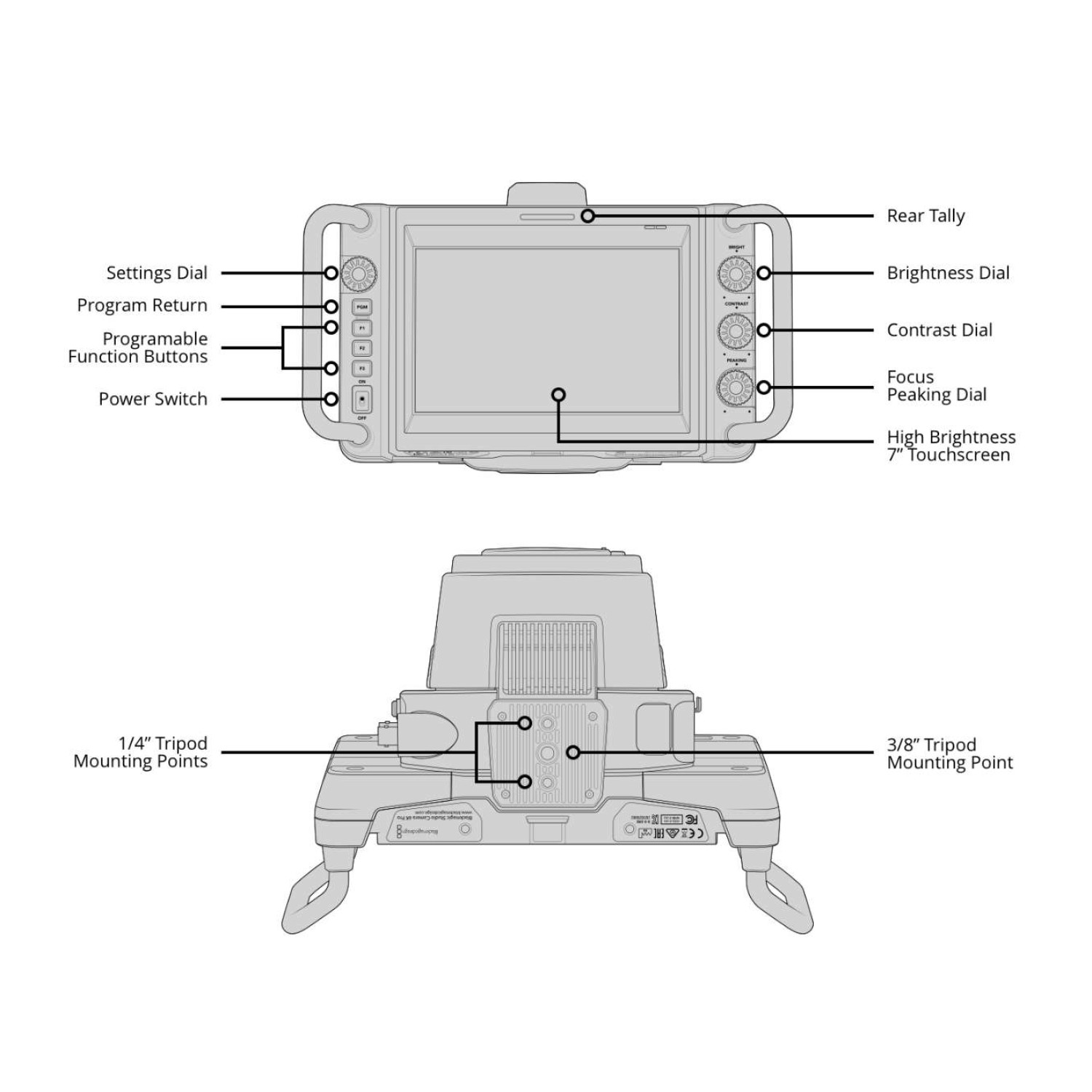

A 7-inch 1920 x 1200 LCD capacitive touchscreen with 2000 nits brightness provides clear monitoring. Physical controls include a rotary settings dial, program button, three customizable function buttons (F1-F3), and dedicated brightness, contrast, and peaking dials.

Mounting Options

The camera provides 2 x 1/4-inch and 1 x 3/8-inch tripod mounts for flexible rigging.

Connections

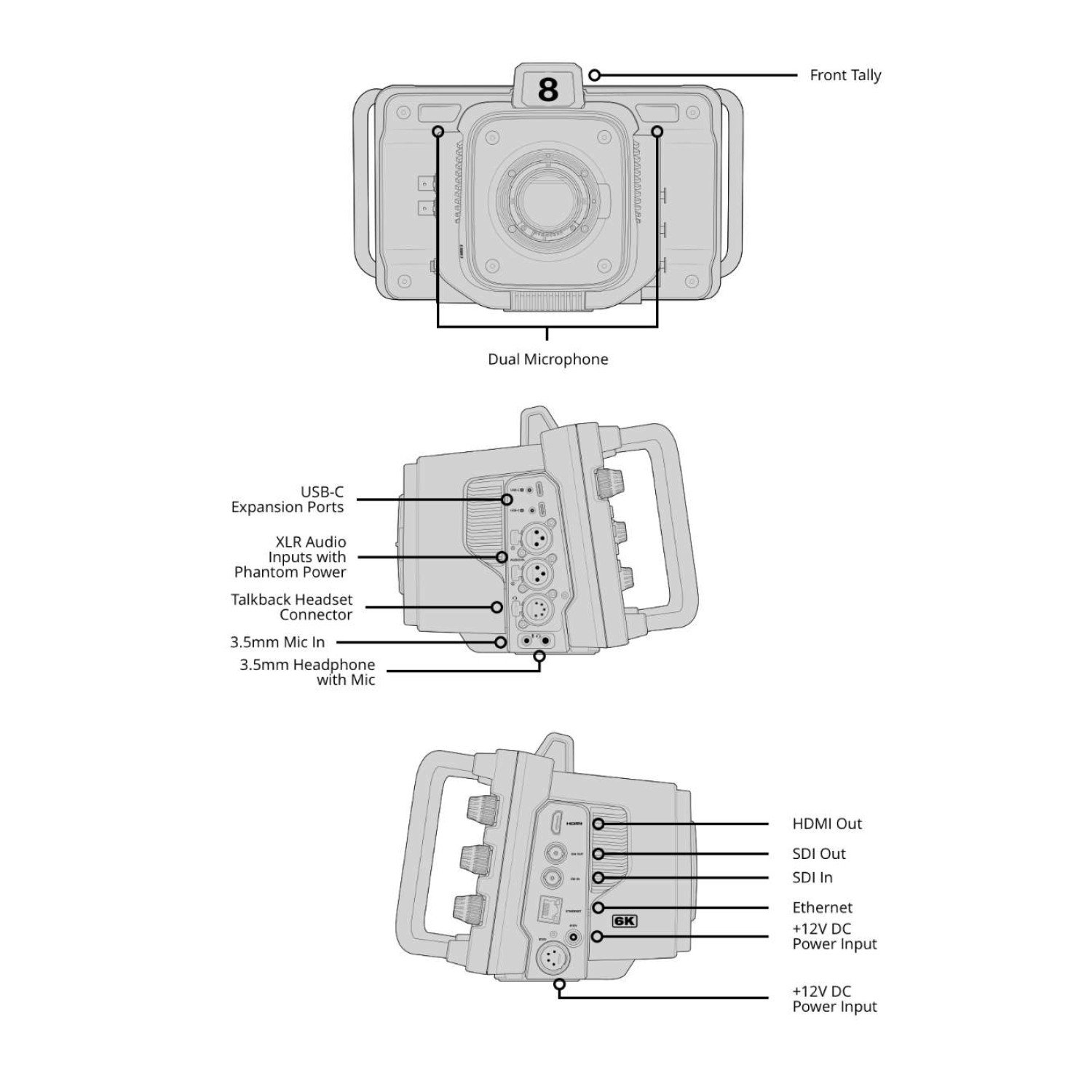

Connectivity includes 1 x SDI input and 1 x SDI output supporting 1.5G, 3G, 6G, and 12G rates, plus 1 x HDMI 2.0 output. Audio connections feature 2 x XLR inputs (switchable mic/line with phantom power), 1 x 3.5mm stereo input (also for timecode), 1 x 5-pin XLR for talkback, and 1 x 3.5mm TRRS headphone/mic jack. SDI outputs carry two channels of program audio and talkback on channels 15 and 16. Reference input is supported via Tri-Sync or Black Burst when using the optional Blackmagic Studio Converter. Network and computer connectivity include 10Gb/s Ethernet and dual USB Type-C 3.1 Gen 1 ports for recording, focus/zoom demands, and software updates.

Audio and Streaming

An integrated stereo microphone and built-in mono speaker provide on-camera audio capabilities. The camera supports direct RTMP streaming over Ethernet or via a mobile internet connection through USB-C. Streaming platforms include ATEM Television Studio HD8 ISO, Facebook, Twitch, YouTube, Twitter, Vimeo, and more.

Standards Compliance

The camera supports multiple HD and Ultra HD video formats from 1080p23.98 to 2160p60, including interlaced HD standards. It is SMPTE compliant for SDI video formats and supports 48kHz 24-bit SDI audio sampling.

Media and Codecs

Recording is supported via USB-C expansion ports to external drives, with media formatted in ExFAT or HFS+. Codecs include Blackmagic RAW at multiple constant bitrate (3:1, 5:1, 8:1, 12:1) and constant quality (Q0, Q1, Q3, Q5) settings across all resolutions. Storage rate requirements vary by resolution and compression ratio.

Control and Network Features

Control options include Blackmagic Zoom and Focus Demand accessories, SDI/HDMI/Ethernet remote control, and REST API control over Ethernet or USB Ethernet. Network features include NTP time synchronization, a web media manager, FTP file transfer, and SMB file sharing. Color correction is provided via DaVinci YRGB.

Talkback and Tally

The camera features front-facing and rear-facing tally indicators for both talent and operator, with talkback available via SDI channels 15 and 16.

Software and Operating Systems

Included software is Blackmagic Camera Setup for Mac and Windows. Supported operating systems are macOS Ventura 13.0, Sonoma 14.0, or later, and Windows 10/11.

Power Requirements

Power is supplied via a 12V DC locking 5.5mm barrel connector, 12V DC 4-pin XLR, or Type 4 PoE over RJ45 Ethernet. The camera consumes 32–52W via DC input or 38–59W via PoE. A 12V 60W external power supply is included.

Optional Accessories

Compatible accessories include Blackmagic Focus Demand, Blackmagic Zoom Demand, Blackmagic Studio Converter, ATEM switchers, HyperDeck recorders, Blackmagic Cloud storage solutions, and Ultimatte keyers.

Environmental Specifications

The operating temperature range is 0° to 40°C (32° to 104°F), with storage from -20° to 45°C (-4° to 113°F) and relative humidity from 0% to 90% non-condensing.

What's Included

The package includes the Blackmagic Studio Camera 6K Pro, sun shade, tripod mount with 15mm rail compatibility, tripod plate, turret dust cap, 12V DC power supply with international adapters, a welcome wallet with QR code for software download, DaVinci Resolve download card, and a Blackmagic Design sticker.

Warranty

Backed by a 1-year limited manufacturer’s warranty.
