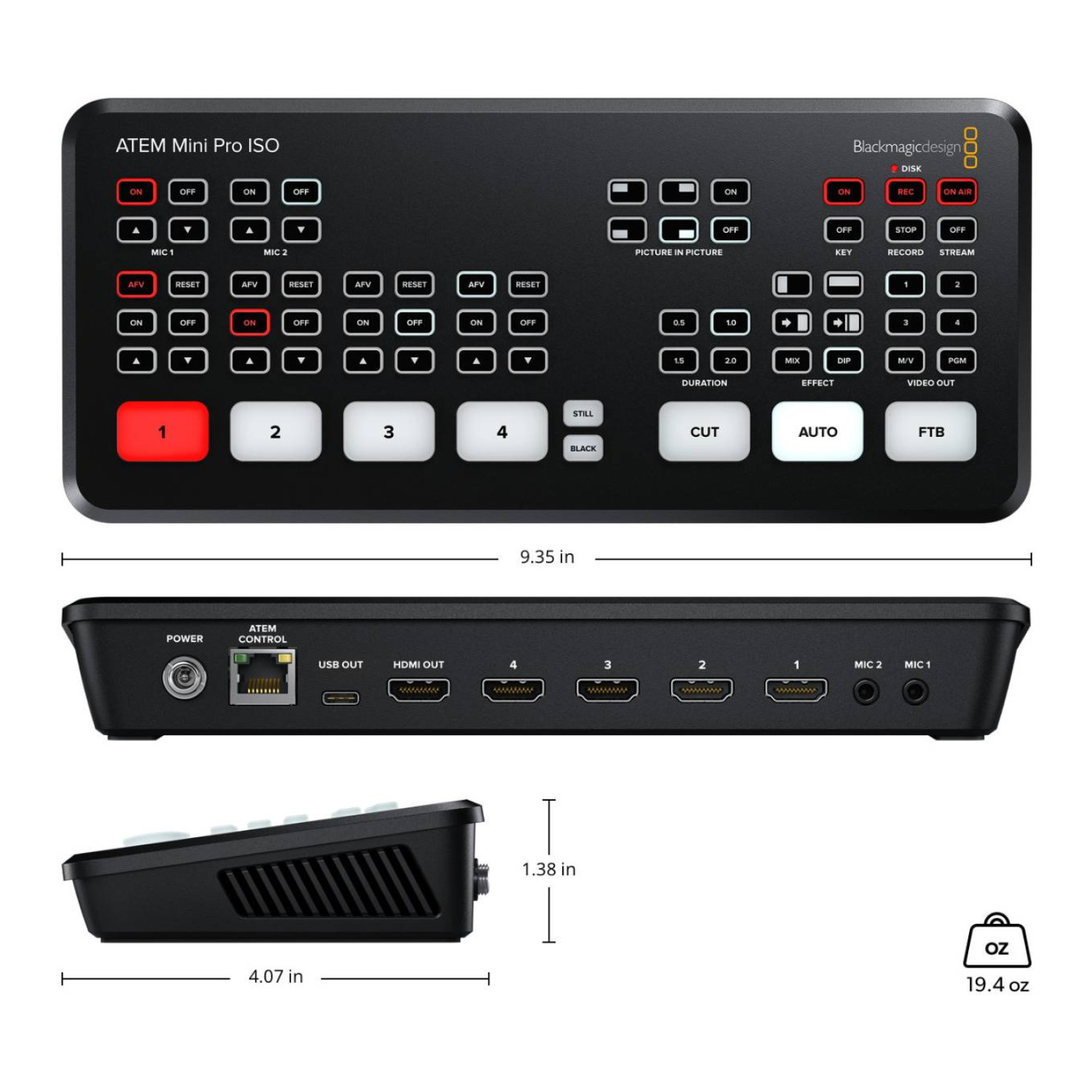

The ATEM Mini Pro ISO is a professional-grade live production switcher designed for multi-camera streaming, recording, and broadcasting. It features extensive connectivity, advanced video processing, high-quality audio support, and direct integration with professional editing workflows.

Connections

The switcher offers a total of 9 video inputs and 4 video outputs, along with 4 auxiliary outputs. It supports SDI rates of 1.5G and 3G, ensuring high-quality video transmission. There are 8 HDMI Type-A video inputs with 10-bit HD switching capability and 2-channel embedded audio. Additionally, it provides 3 HDMI video outputs with dedicated program outputs. For audio, the unit includes 2 XLR combo inputs with phantom power and 1 BNC 32-channel MADI digital audio input, while monitoring is supported by a 6.35mm headphone output.

Video Processing and Format Support

The ATEM Mini Pro ISO supports video input re-sync and frame rate/format conversion across all 8 HDMI inputs, ensuring seamless integration of different sources. Webcam output is supported via 2 USB-C ports, capable of streaming at 720p or 1080p. It allows 1 multi-view output that can be routed to HDMI, USB-C, or Thunderbolt connections. Standards include HD formats up to 1080p60, 1080i, and 720p resolutions, with 4:2:2 YUV sampling, 10-bit color precision, and support for the Rec. 709 color space.

Control and Networking

Control options are extensive, with Ethernet connectivity for direct operation or integration with a network. The unit provides 1G Ethernet for streaming and control and a 10G Ethernet connection for high-speed recording. Computer interfaces include 2 USB Type-C 3.1 Gen 1 ports for recording, webcam output, software control, and updates, plus a Thunderbolt port for fill key output, video input, power, and storage connectivity. The built-in control panel supports multi-function operation, with compatibility for advanced ATEM hardware control panels.

Switching and Effects

The switcher is equipped with 1 mix effects row, 10 direct cross points, and 8 key buttons, offering powerful live production flexibility. It includes 4 upstream keyers, 2 downstream keyers, and support for up to 4 advanced chroma keyers. Effects capabilities feature 2 DVE engines, linear and luma keyers, and dedicated transition keyers. It also supports SuperSource, color generators, and 16 routable windows for dynamic switching.

Audio Capabilities

The ATEM Mini Pro ISO includes a 26-input x 2-channel audio mixer, supporting HDMI, MADI, XLR, and Thunderbolt sources. Audio processing is powered by Fairlight technology, with features such as a 6-band parametric EQ, compressor, gate, limiter, and full level and peak metering. Phantom power (+48V) is available for professional microphones, while analog input delay compensation is supported up to 8 frames.

Streaming and Recording

Streaming is supported natively with direct RTMP and SRT protocols via Ethernet or USB-C internet sharing. Up to 8 streaming sources can be integrated with mapped inputs. For recording, the unit offers CFExpress slots, USB-C recording, and network recording. It captures 8 HDMI ISO inputs as individual H.264 .mp4 files at up to 70 Mb/s, plus a program output file with AAC audio. Additionally, 26 channels of audio are recorded separately as 24-bit 48kHz WAV files. Switching events are stored as a DaVinci Resolve project (.drp) for seamless post-production.

Media and Multi-View

The unit features 2 media players with fill and key support. The media pool stores up to 20 still images and 200 frames in HD video format, supporting file types including PNG, JPEG, TIFF, GIF, and BMP. Multi-view monitoring is configurable for 4, 7, 10, 13, or 16 sources, displaying program, preview, inputs, media players, clean feeds, streaming status, and audio meters.

Software and Camera Control

The ATEM Mini Pro ISO integrates seamlessly with ATEM Software Control (Mac & Windows), providing advanced control, setup, and configuration. It supports camera control for most Blackmagic Design cameras, including focus, iris, zoom, gain, white balance, tint, shutter, ND filter, tally, color correction, and recording control.

Power and Environmental Specifications

Power is supplied via an external 12V adapter, with a maximum consumption of 120W. The unit is designed for professional environments, with an operating temperature of 5°C to 40°C (41°F – 104°F), storage temperature of -10°C to 60°C (14°F – 140°F), and relative humidity tolerance of 0–90% non-condensing.

In the Box & Warranty

The package includes the ATEM Mini Pro ISO switcher and an external 12V DC power supply. It comes with a 1-year limited manufacturer’s warranty.
