ATEM Micro Panel – Technical Specifications

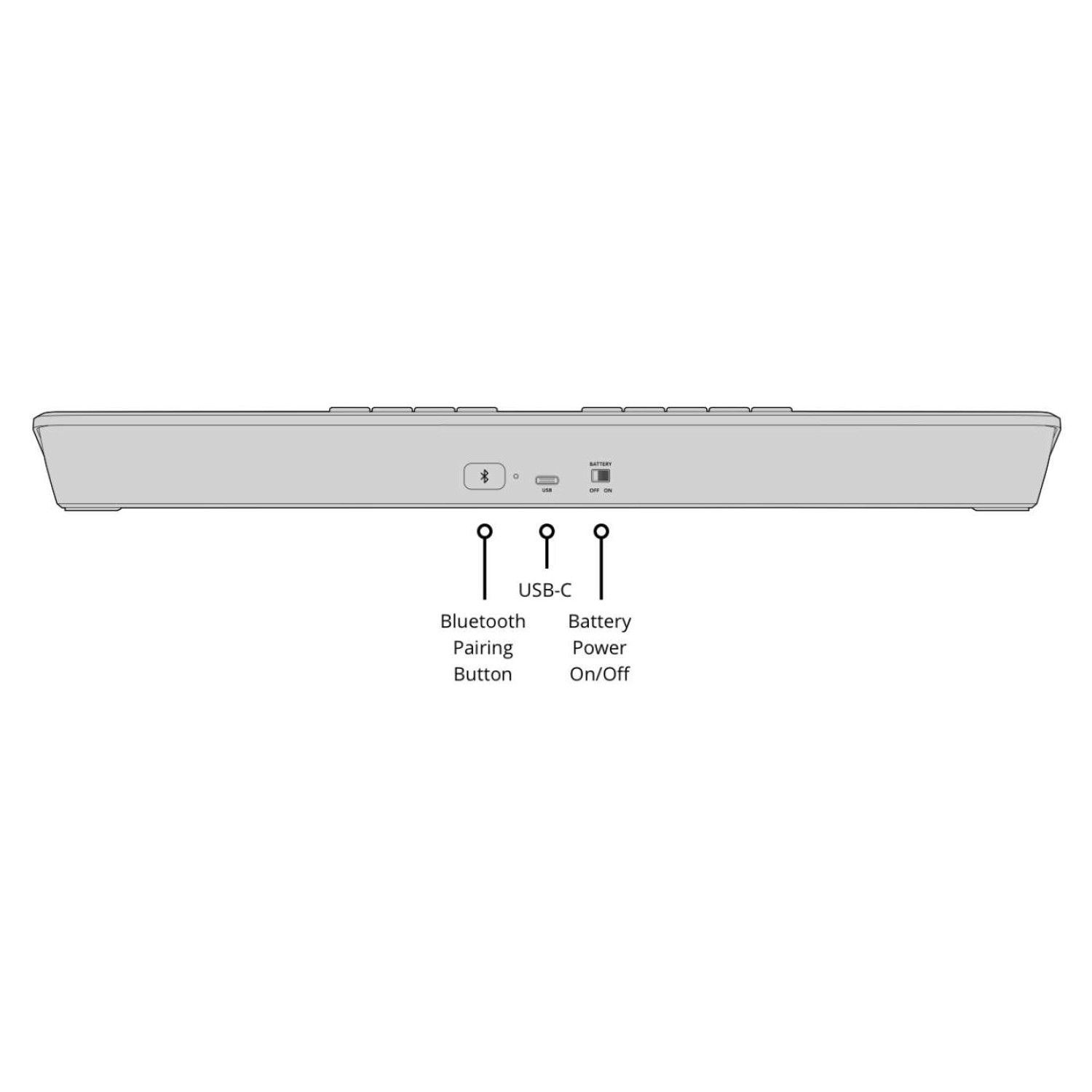

Connections

The ATEM Micro Panel connects to a host computer via a USB Type-C interface, ensuring fast and reliable data transfer. It also supports Bluetooth 5.1 LE for wireless connectivity, offering flexibility in setup and operation.

Product Specifics
This panel is equipped with a single Mix Effects (M/E) row and features 10 direct cross points, expandable to 20 through shifted cross points. The crosspoint buttons utilize tri-color LED indicators for clear visual feedback. It includes a dedicated preview transition button, as well as CUT and AUTO switching buttons for seamless transitions. Users can select from DIP, DVE, STINGER, MIX, and WIPE transition types. The M/E select function is supported by 4 dedicated buttons, while upstream and downstream key controls feature 4 and 2 ON/OFF buttons respectively. A single transition slider is provided for manual control.

Software Compatibility
The ATEM Micro Panel is designed to control the ATEM Software Control Panel running on the connected host computer. It is compatible with Mac operating systems from macOS 14.0 Sonoma and macOS 15.0 Sequoia or later, as well as Windows 10 and Windows 11.

Power Requirements
The device features an internal battery with a dedicated power switch, and it can be charged or powered externally via its USB-C port. It has a maximum power consumption of 3 W and offers a minimum battery life of 6 hours under normal usage conditions.

Environmental Specifications
The ATEM Micro Panel is built to operate in temperatures ranging from 5° to 40° C (41° to 104° F). For storage, it can withstand temperatures between -20° and 45° C (-4° to 113° F) with relative humidity from 0% to 90% non-condensing.

What's Included
In the box, users will find the ATEM Micro Panel and a welcome wallet containing a QR code for software download.

Warranty
The product is backed by a 1-Year Limited Manufacturer’s Warranty.
