ATEM 4 M/E Advanced Panel 40 Technical Specifications

Connections

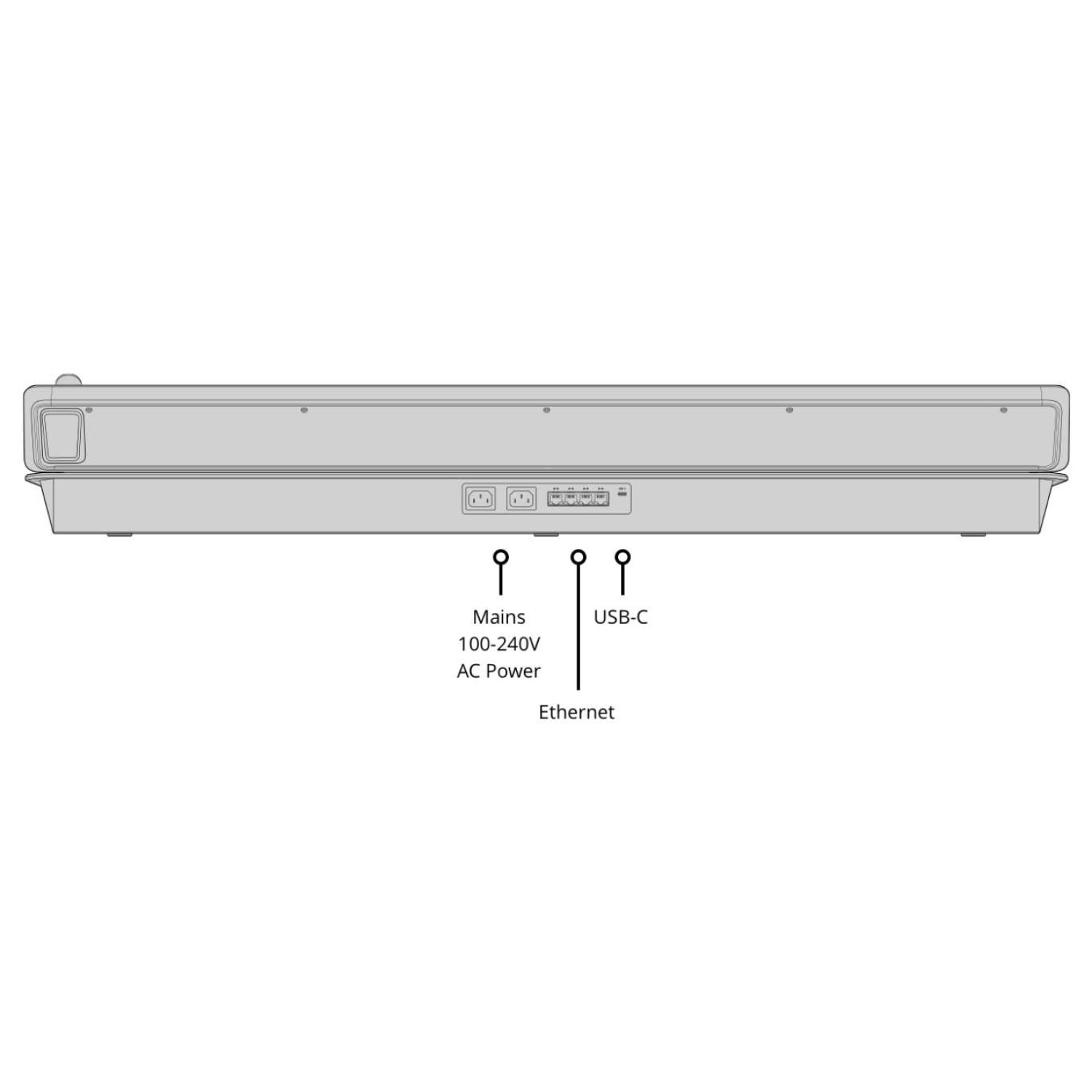

The ATEM 4 M/E Advanced Panel 40 is equipped with four 10/100/1000 Base-T Ethernet ports, featuring loop output for connecting additional control panels or computers. For software and firmware updates, it includes a USB-C port, ensuring quick and seamless updates.

Product Specifics

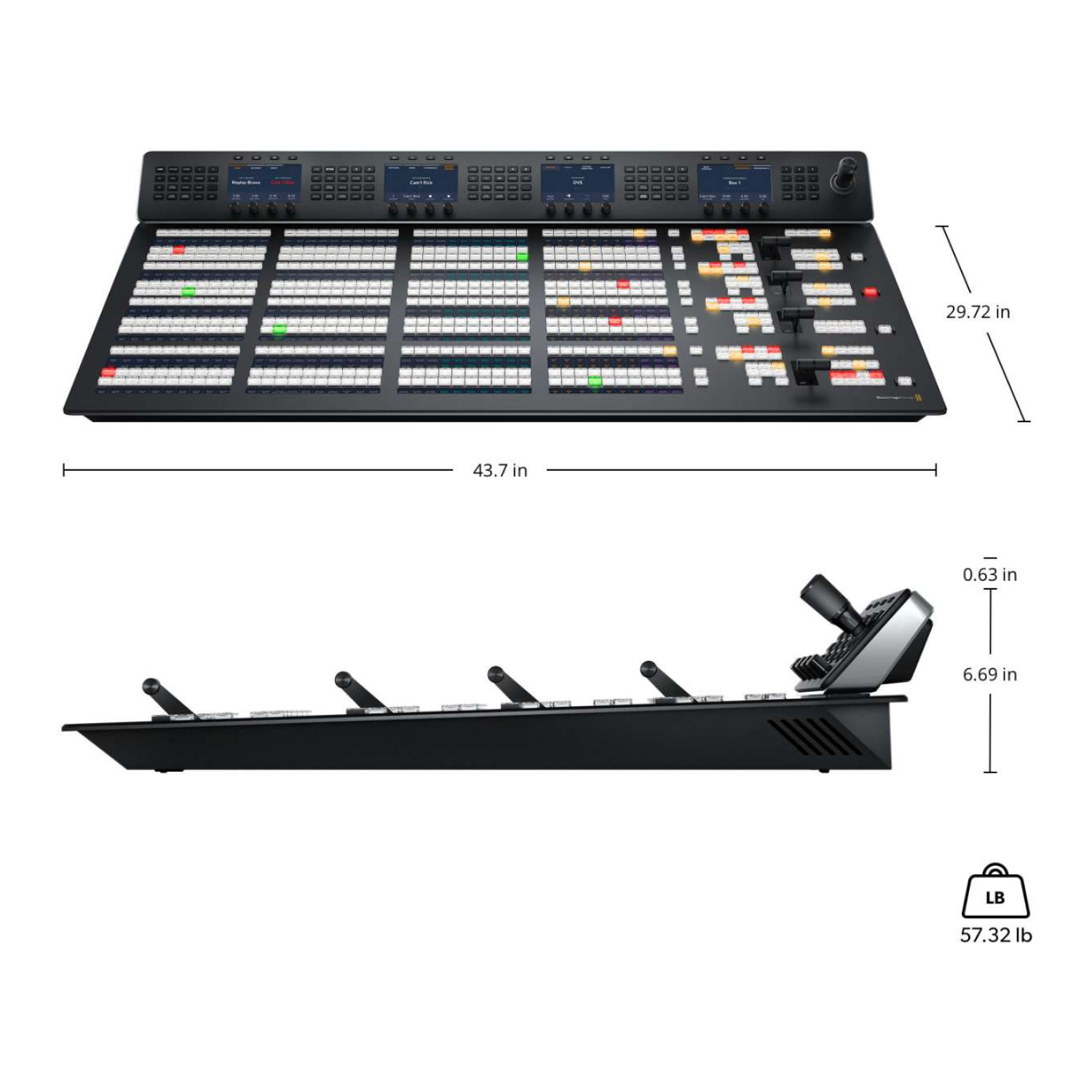

This professional panel features four mix effects (M/E) rows, offering 40 direct cross points and 80 shifted cross points for extensive control options. The tri-color LED crosspoint buttons are paired with 10 rows of 24-character LCD labels for clear identification. It includes 20 On-Air indicators, four DSK transition selectors (Auto, Cut, Tie/Preview), and four preview transition controls. Transition rates can be displayed via the main menu, with control provided by four LCD menu displays and 4 x 20 menu control buttons. Additional controls include 4 x 40 dedicated macro buttons, 24 transport control buttons, four destination buses, four source select buses, four fader bars, a 3-axis joystick, and a numeric keypad.

Software
The panel works seamlessly with the ATEM Software Control Panel application, enabling enhanced switching capabilities and configuration.

Operating Systems
Compatible with Mac 14.0 Sonoma and Mac 15.0 Sequoia or later, as well as Windows 10 and Windows 11 operating systems.

Power Requirements
The ATEM 4 M/E Advanced Panel 40 features two internal 100-240V AC power inputs with redundant power support for reliability. The total power usage is 250W.

Environmental Specifications
Designed for professional environments, the operating temperature range is 0° to 40°C (32° to 104°F), with a storage temperature range of -20° to 60°C (-4° to 140°F). It supports relative humidity levels of up to 95% non-condensing.

What's Included
The package includes the ATEM 4 M/E Advanced Panel 40 unit.

Warranty
The product comes with a 1-Year Limited Manufacturer’s Warranty.
