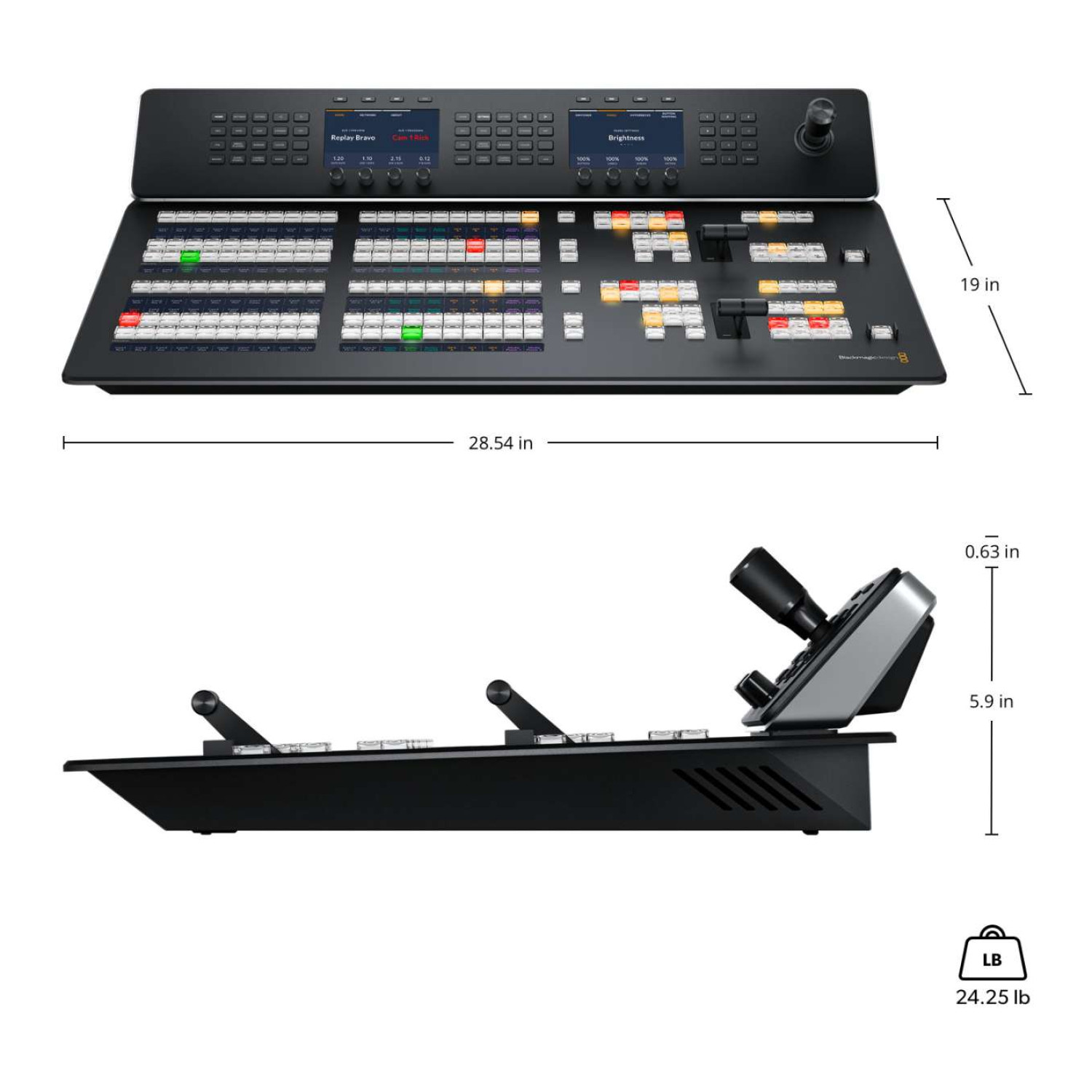

Technical Specifications – ATEM 2 M/E Advanced Panel 20

Connections:
The panel features four 10/100/1000 BASE-T Ethernet ports with loop output capability for connecting additional control panels or computers, ensuring seamless integration in multi-operator environments. A single USB-C port is available for firmware updates.

Product Specifics:
Equipped with 2 Mix Effects (M/E) rows, the panel offers 20 direct cross points and 40 shifted cross points. The tri-color LED crosspoint buttons provide clear visual feedback, and each is accompanied by a label with six rows of 24-character LCD displays. The unit features 8 on-air indicators and no dedicated power status indicators. For downstream keyer (DSK) control, there are 4 dedicated selectors for Auto, Cut, and Tie/Preview transitions. Additionally, it provides 2 preview transition buttons and transition rate displays via the main menu. Operators benefit from 2 LCD menu displays, each controlled by 20 buttons, along with 2 sets of 20 dedicated macro buttons for quick recall of complex commands. The panel also includes 8 transport control buttons, dual destination buses, dual source select buses, 2 smooth fader bars, a single 3-axis joystick, and a numeric keypad for precision control.

Software:
The ATEM 2 M/E Advanced Panel 20 is compatible with the ATEM Software Control Panel application. It supports Mac 14.0 Sonoma and Mac 15.0 Sequoia or later, as well as Windows 10 and Windows 11 operating systems.

Power Requirements:
The panel operates on dual internal 100-240V AC inputs, allowing for redundant power to ensure uninterrupted operation. It consumes a maximum of 100W of power.

Environmental Specifications:
Designed for professional broadcast environments, it operates reliably in temperatures from 0° to 40°C (32° to 104°F), can be stored between -20° to 60°C (-4° to 140°F), and withstands relative humidity levels up to 95%.

What's Included:

• ATEM 2 M/E Advanced Panel 20

• 1 Year Limited Manufacturer’s Warranty
