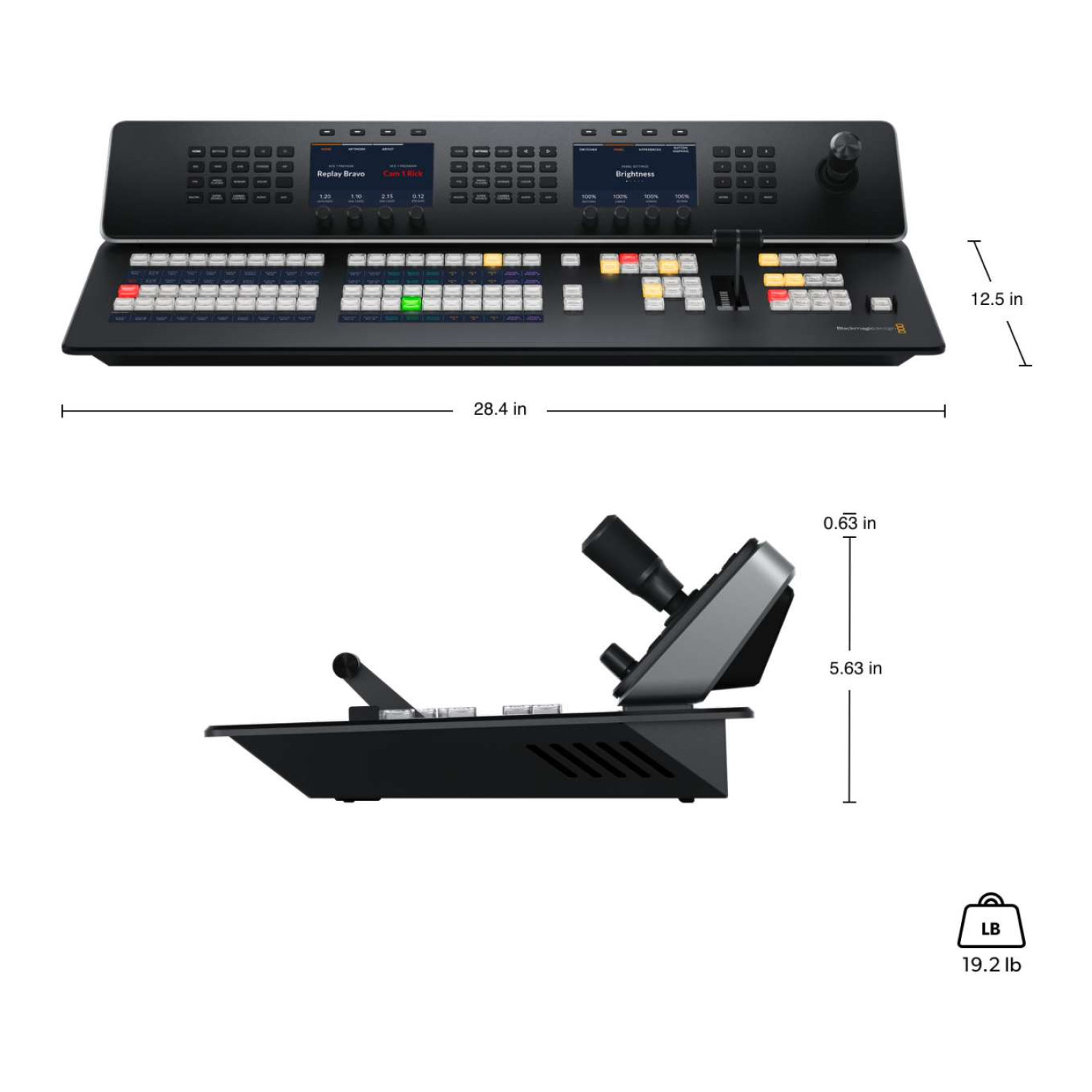

ATEM 1 M/E Advanced Panel 20 Technical Specification

Connections
The ATEM 1 M/E Advanced Panel 20 features four Ethernet 10/100/1000 BASE-T connections with loop output, allowing connection to additional control panels or computers. It also includes a single USB-C port dedicated to firmware updates, ensuring smooth and efficient software upgrades.

Product Specifics
This panel is equipped with one mix effects row, offering 20 direct cross points and 40 shifted cross points. The tri-color LED crosspoint buttons enhance visual clarity, while one preview transition function allows quick monitoring. Transition rate displays are accessible via the main menu. For navigation and control, the panel has two LCD menu displays, two sets of 20 menu control buttons, and a dedicated set of 20 macro buttons. Additionally, it includes eight transport control buttons, one destination bus, one source select bus, a single fader bar, and a three-axis joystick for precision camera control. A numeric keypad further enhances operational efficiency.

Software
The ATEM 1 M/E Advanced Panel 20 is compatible with the ATEM Software Control Panel application. It supports macOS 14.0 Sonoma and macOS 15.0 Sequoia or later, as well as Windows 10 and Windows 11 operating systems.

Power Requirements
The panel operates on dual internal 100–240V AC inputs, ensuring flexible power compatibility worldwide. It features redundant power for reliability during critical operations, with a maximum power consumption of 75W.

Environmental Specifications
The panel is designed to operate within a temperature range of 0° to 40° C (32° to 104° F) and can be stored between -20° to 60° C (-4° to 140° F). It supports relative humidity levels of 0% to 95% non-condensing, making it durable for various environmental conditions.

What's Included
The package includes the ATEM 1 M/E Advanced Panel 20 and a welcome wallet with a QR code for software download.

Warranty
The product comes with a 1-Year Limited Manufacturer’s Warranty, ensuring quality assurance and support.
