ATEM 1 M/E Advanced Panel 10 Technical Specifications

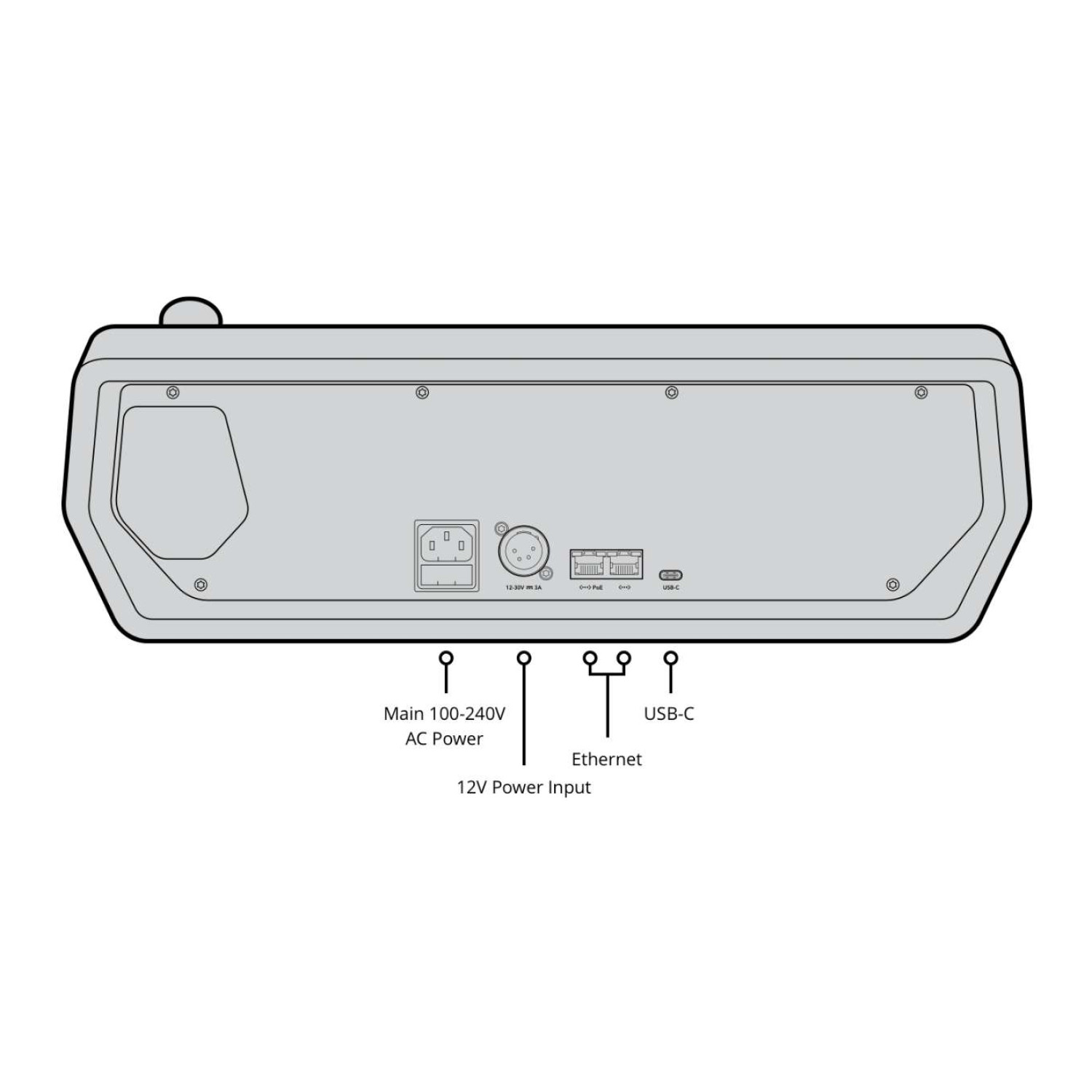

Connections
The panel features two 10/100/1000 BaseT Ethernet ports with loop output, allowing connection to additional control panels or computers for expanded control. For firmware updates, it includes a single USB-C port.

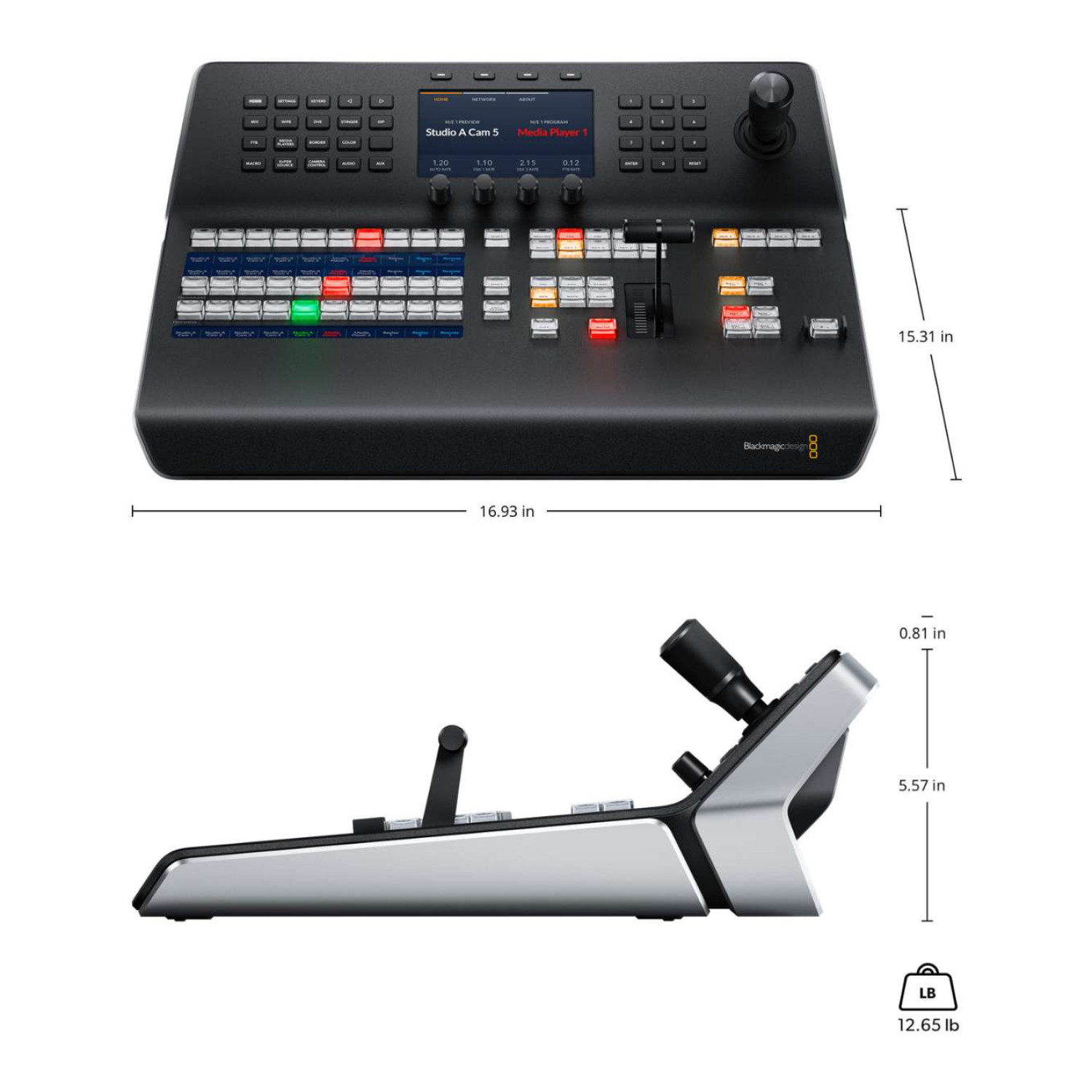

Product Specifics
The ATEM 1 M/E Advanced Panel 10 is equipped with 10 direct cross points and 20 shifted cross points. The crosspoint buttons are Tri-Color LED type with labels displayed on three rows of 24-character LCD screens. It has four On-Air indicators and supports DSK transition selectors including Auto, Cut, and Tie/Preview, along with one preview transition function. Transition rates can be viewed via the main menu. The panel also features three LCD menu displays, 20 menu control buttons, and 10 dedicated macro buttons. Additionally, it comes with one destination bus, one source select bus, a single fader bar, a three-axis joystick, and a numeric keypad.

Software
The panel works seamlessly with the ATEM Software Control Panel for advanced configuration and operation.

Operating System Compatibility
For macOS, it supports Mac 14.0 Sonoma and Mac 15.0 Sequoia or later. For Windows, it is compatible with Windows 10 and Windows 11.

Power Requirements
The ATEM 1 M/E Advanced Panel 10 operates with an internal 100–240V AC input voltage and features redundant power support for uninterrupted operation. It consumes up to 45W of power.

Environmental Specifications
The operating temperature range is 0° to 40° C (32° to 104° F), and the storage temperature range is -20° to 60° C (-4° to 140° F). It can withstand up to 95% relative humidity in non-condensing conditions.

What's Included
The package includes the ATEM 1 M/E Advanced Panel 10.

Warranty
It comes with a 1-Year Limited Manufacturer’s Warranty.
