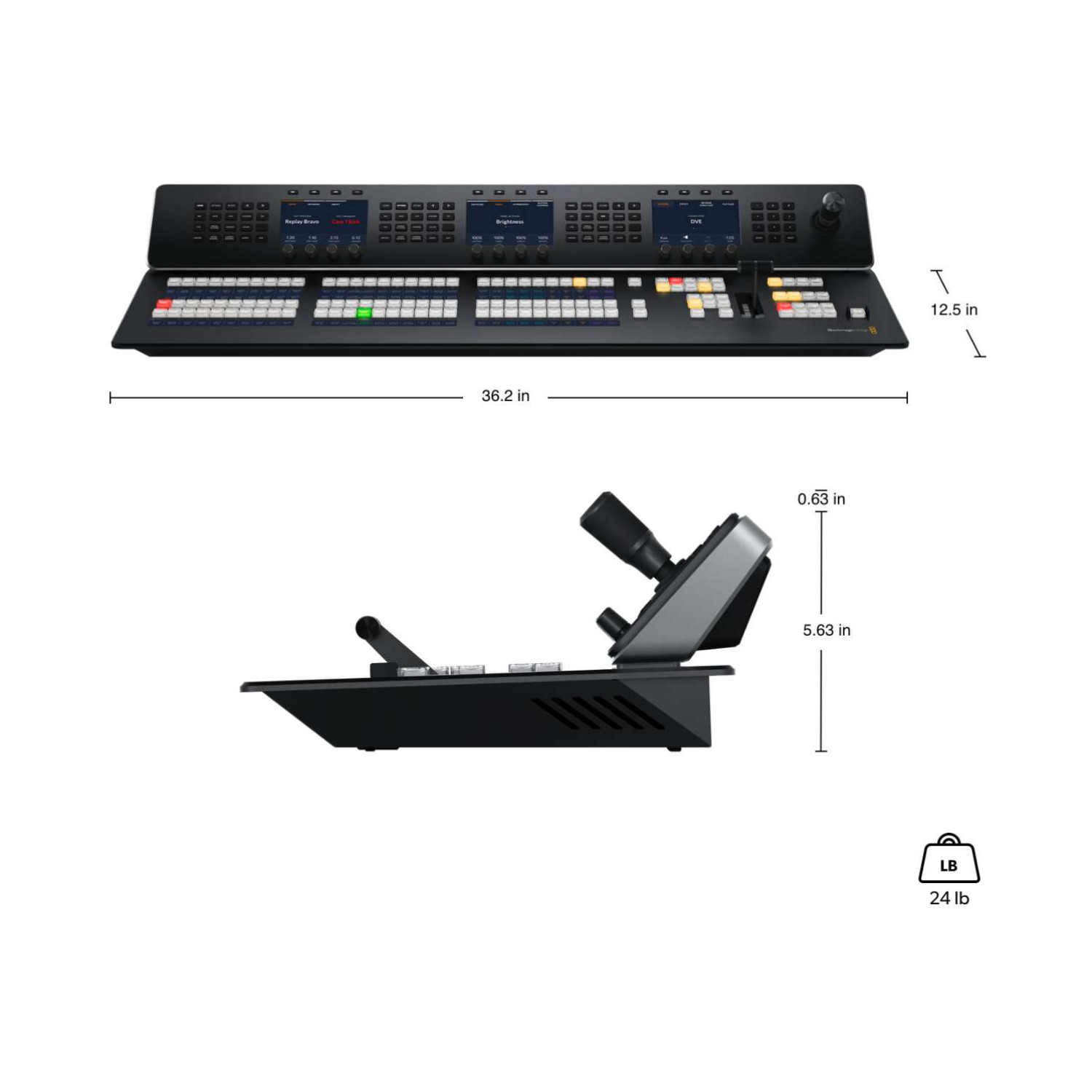

ATEM 1 M/E Advanced Panel 30 Technical Specifications

Connections
The ATEM 1 M/E Advanced Panel 30 features four 10/100/1000 BASE-T Ethernet ports with loop output, allowing connection to additional control panels or computers for expanded workflow. A dedicated USB-C port is available for firmware updates, ensuring the panel stays up to date with the latest enhancements.

Product Specifics
This panel includes one mix effects row and 30 direct cross points, expandable to 60 when using shifted cross points. Each crosspoint button uses tri-color LED illumination for clear status indication. It offers one preview transition, with transition rates displayed via the main menu. Control is enhanced with three LCD menu displays, each paired with 20 menu control buttons, and one set of 30 dedicated macro buttons for quick command execution. The panel also includes eight transport control buttons, one destination bus, one source select bus, a fader bar for manual transitions, a three-axis joystick for precise DVE control, and a numeric keypad for fast input.

Software Compatibility
The ATEM 1 M/E Advanced Panel 30 works seamlessly with the ATEM Software Control Panel application. It is compatible with macOS 14.0 Sonoma and macOS 15.0 Sequoia or later, as well as Windows 10 and Windows 11 operating systems.

Power Requirements
The panel is equipped with two internal 100-240V AC power inputs, offering redundant power for uninterrupted operation. It consumes a maximum of 80W during use.

Environmental Specifications
Designed for professional environments, the panel operates reliably in temperatures from 0° to 40°C (32° to 104°F) and can be stored in temperatures from -20° to 60°C (-4° to 140°F). It supports a relative humidity range of 0% to 95%, non-condensing.

What's Included
The package includes the ATEM 1 M/E Advanced Panel 30 and a welcome wallet containing a QR code for software download, providing quick setup and integration.

Warranty
The product is covered by a 1-year limited manufacturer’s warranty.
