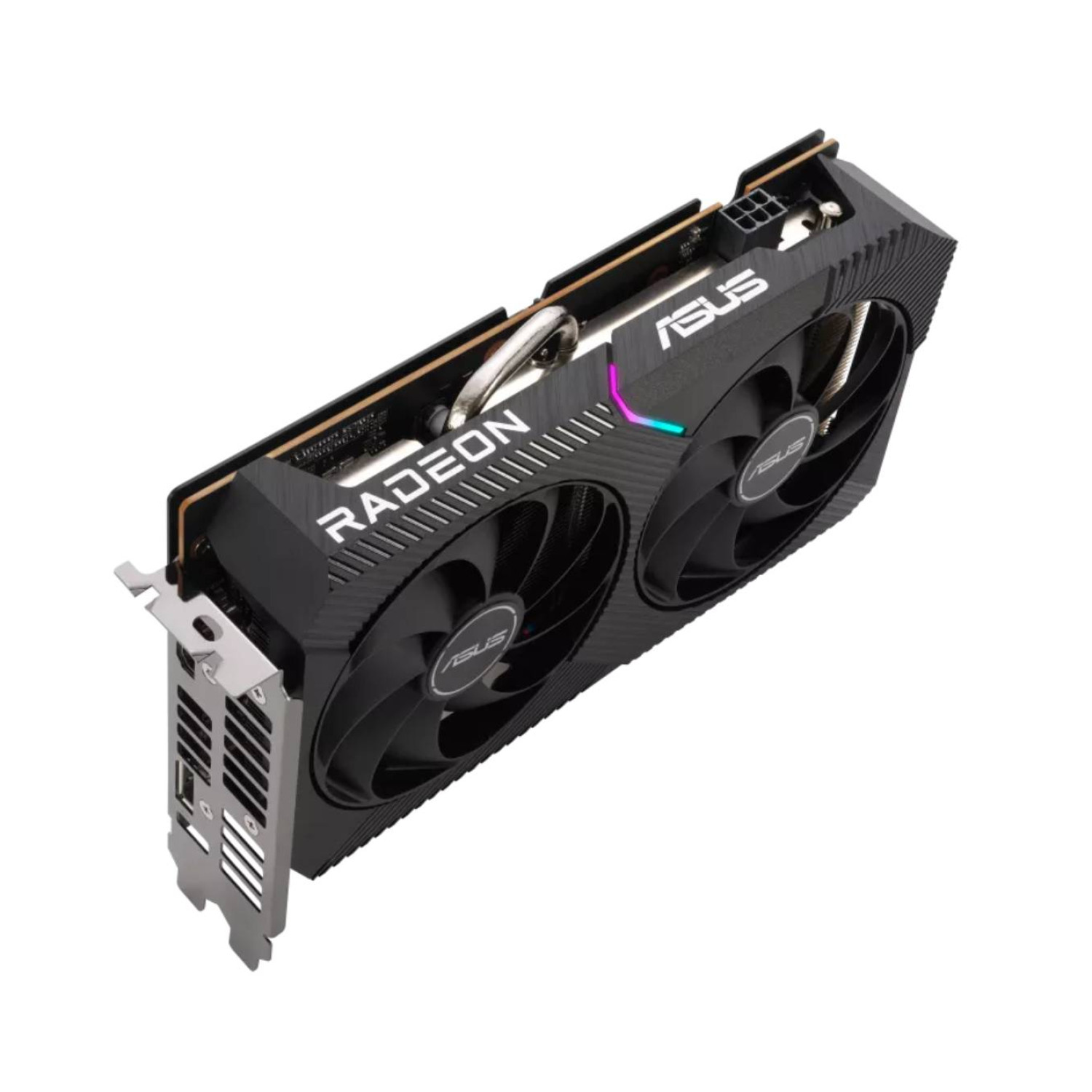

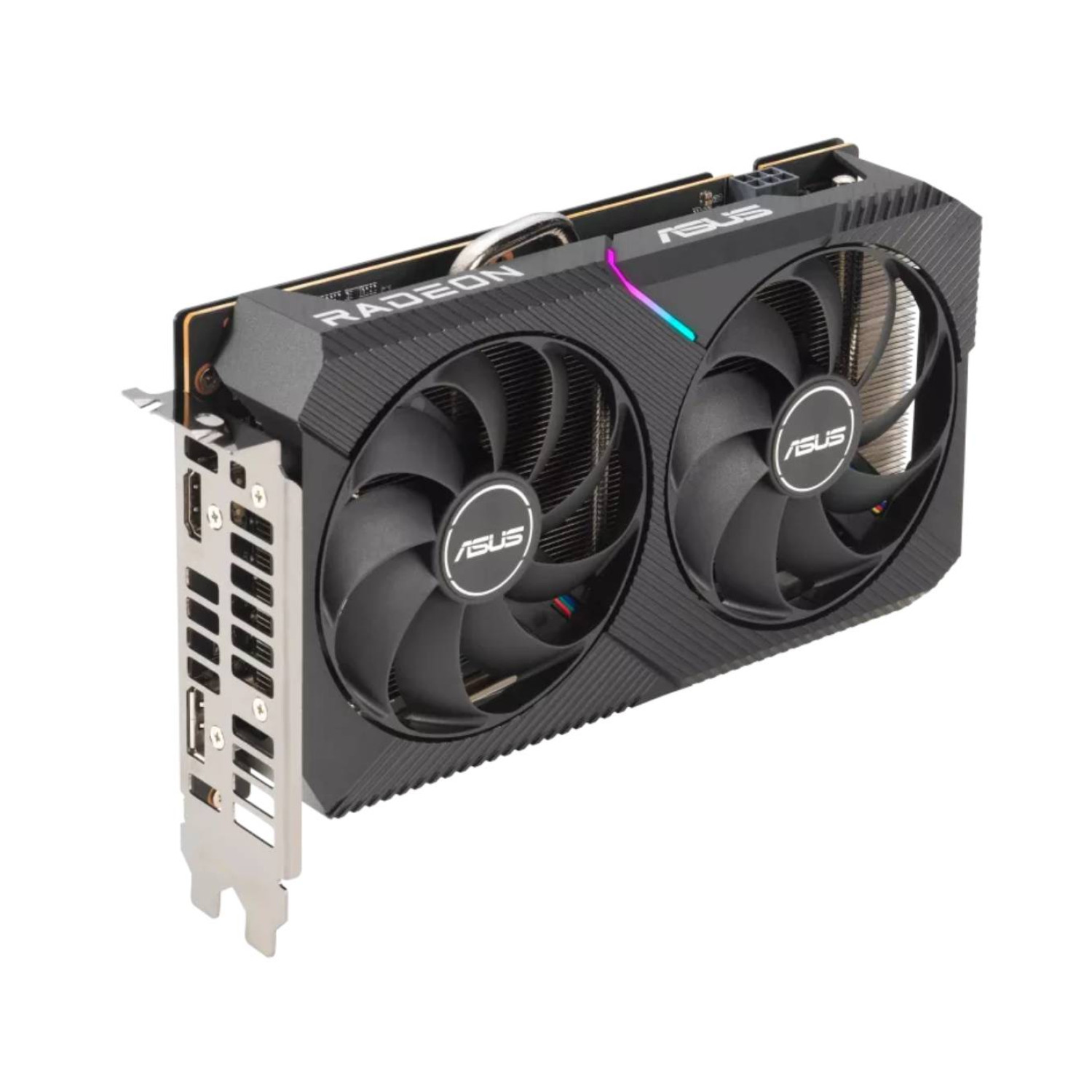

The ASUS Dual Radeon™ RX 6500 XT OC Edition is designed for compact builds while offering reliable performance for smooth 1080p gaming. Powered by the AMD Radeon™ RX 6500 XT GPU and running on the PCI Express 4.0 interface, it is fully compatible with modern motherboards and comes with OpenGL® 4.6 support, ensuring a wide range of application and game compatibility.

This card is equipped with 4GB of GDDR6 video memory on a 64-bit memory interface, operating at a high speed of 18 Gbps. With 1,024 stream processors, it delivers stable gaming performance at Full HD resolutions. The engine clock is optimized for both OC and Gaming modes, achieving up to 2820 MHz (Boost Clock) and up to 2670 MHz (Game Clock) in OC Mode, and up to 2820 MHz (Boost Clock) and up to 2650 MHz (Game Clock) in Gaming Mode. This allows users to experience enhanced efficiency and smooth frame rates across various gaming workloads.

In terms of display capabilities, the ASUS RX 6500 XT supports a maximum digital resolution of 7680 x 4320 (8K). It features one native HDMI 2.1 port and one native DisplayPort 1.4a, along with HDCP 2.3 support, enabling compatibility with the latest monitors and secure playback of protected content. The card can drive up to two displays simultaneously, making it well-suited for gamers and creators with dual-monitor setups.

The GPU is built with a 2-slot design, measuring 201 x 128 x 40 mm (7.9 x 5.03 x 1.57 inches), making it a compact yet powerful option for smaller PC cases. It requires a single 6-pin power connector, with ASUS recommending a 500W power supply to ensure stability during peak performance. Additional aesthetic value is provided by AURA SYNC RGB lighting support, allowing synchronization with other ASUS RGB-enabled components for a customizable look.

For software, ASUS includes support for GPU Tweak II, which offers advanced tuning, monitoring, and optimization tools, along with drivers downloadable from the ASUS support site. The package also includes a Speedsetup Manual to guide users through installation and setup.

Note: Wattage recommendations are based on fully overclocked CPU and GPU configurations. Boost Clock represents the maximum frequency achievable during short bursts, while Game Clock refers to the typical frequency under standard gaming workloads. Performance may vary depending on thermal conditions and application demand. The RX 6500 XT also supports CrossFire for DirectX® 12 and Vulkan® for multi-GPU configurations in compatible workloads.
