UltraStudio 4K Extreme 3 – Technical Specifications

The UltraStudio 4K Extreme 3 is a professional-grade capture and playback solution designed for high-end video production, broadcast, and post-production workflows. It builds on the legacy of its predecessor with enhanced performance, integrating Thunderbolt 3 connectivity and offering 40 Gbps data transfer speeds for seamless 4K60p RGB and stereoscopic capture. This device is ideal for editors, colorists, VFX artists, and live production teams requiring high-resolution, real-time performance.

Interface and Connectivity

UltraStudio 4K Extreme 3 is equipped with multiple high-speed connection options:

• Thunderbolt 3 interface (up to 40 Gbps bandwidth)

• PCI Express for desktop workstations

• 12G-SDI input/output with loop-through support

• HDMI 2.0 input/output

• Analog component video

• 4-channel professional XLR audio

• 2-channel AES/EBU digital audio

• Timecode in/out, RS-422 serial deck control, and Blackburst/reference inputs

• Dual optical fiber cages for long-distance signal routing and expansion

Video Standards and Resolution

The UltraStudio 4K Extreme 3 supports an extensive range of video formats and resolutions:

• Ultra HD and 4K DCI capture/playback up to 60 fps

• Real-time H.265 encoding

• 4:4:4 chroma sampling for full-color depth

• HDR workflows supported with deep bit-depth (12-bit)

• Stereoscopic (3D) formats supported via dual-link SDI

Design & Build

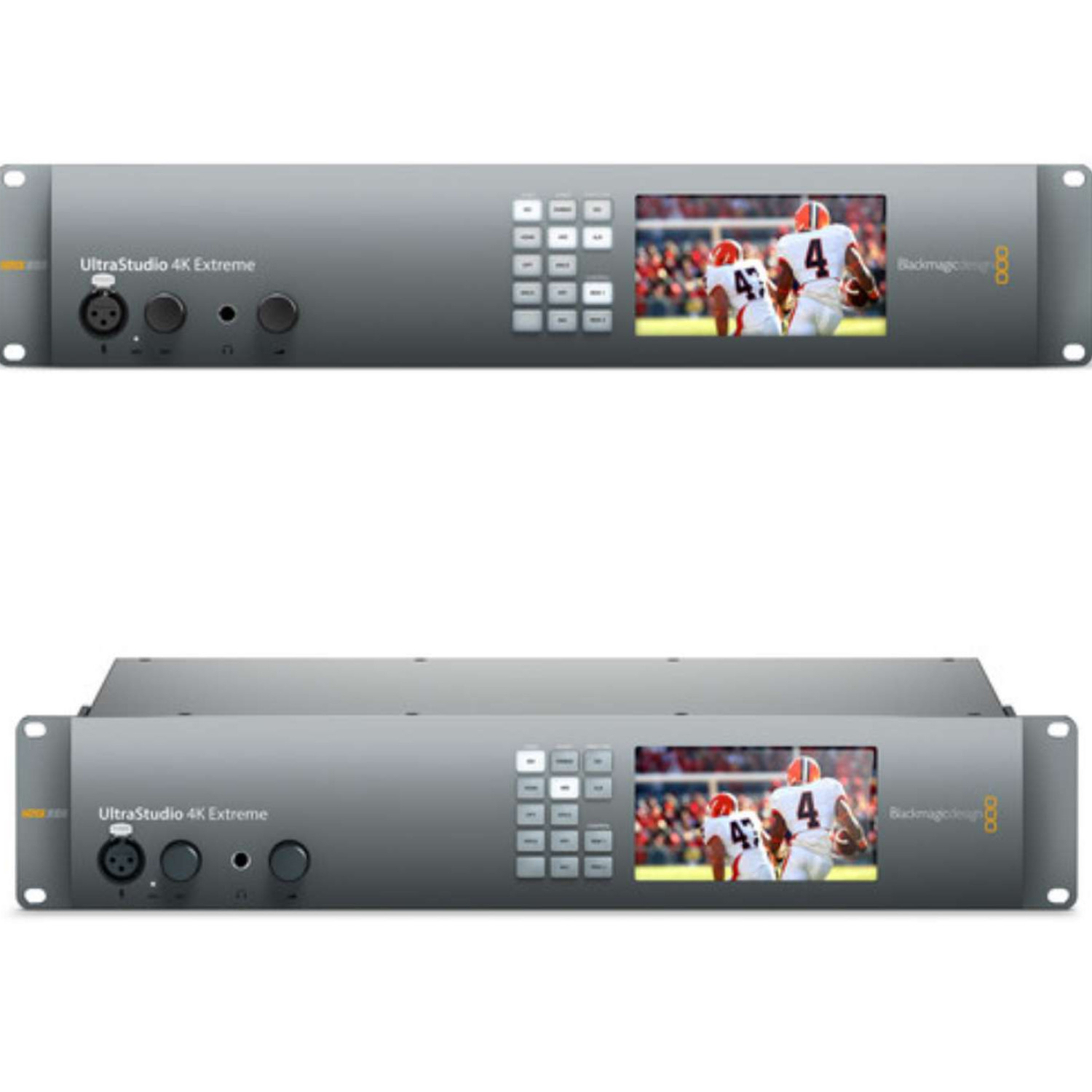

The unit is designed in a 2RU rack-mountable form factor, perfect for broadcast studios and production environments. The front panel includes a full-color LCD preview screen, audio meters, and quick-access video/audio input buttons, offering visual feedback and immediate control.

Use Cases

This device is optimized for:

• Non-linear editing

• Live production

• On-set acquisition

• VFX and color grading

• Audio post-production

• Live streaming and broadcast

Software Compatibility

UltraStudio 4K Extreme 3 works seamlessly with a wide range of professional software across macOS, Windows, and Linux platforms. Compatible apps include:

• DaVinci Resolve

• Final Cut Pro

• Adobe Premiere Pro

• Avid Media Composer

• After Effects, Photoshop

• Wirecast, vMix, Livestream

• Pro Tools, Steinberg Cubase/Nuendo

• Nuke, CasparCG, Uniplay, and many more

Included Software & Drivers

The unit ships with two SD cards containing:

• Media Express

• Disk Speed Test

• LiveKey

• Blackmagic Desktop Video Utility

• Drivers for Mac OS X, Windows (7, 8, 10), and Linux

• DaVinci Resolve (Lite version)

12G-SDI and HDR Support

The 12G-SDI interface allows single-cable capture and playback of 4K and Ultra HD at 60 fps. Dual-link 12G-SDI provides support for stereoscopic workflows or simultaneous fill and key operations. HDR workflows are supported with advanced metadata and uncompressed color precision.

Performance

• Real-time H.265 hardware encoding

• Support for 12-bit RGB workflows

• Low-latency playback and monitoring

• Reliable for intensive post-production and live operations

Form Factor and Durability

Housed in a durable 2RU chassis, UltraStudio 4K Extreme 3 is rack-ready with dual power supply support for redundancy, ensuring maximum uptime in critical environments.
